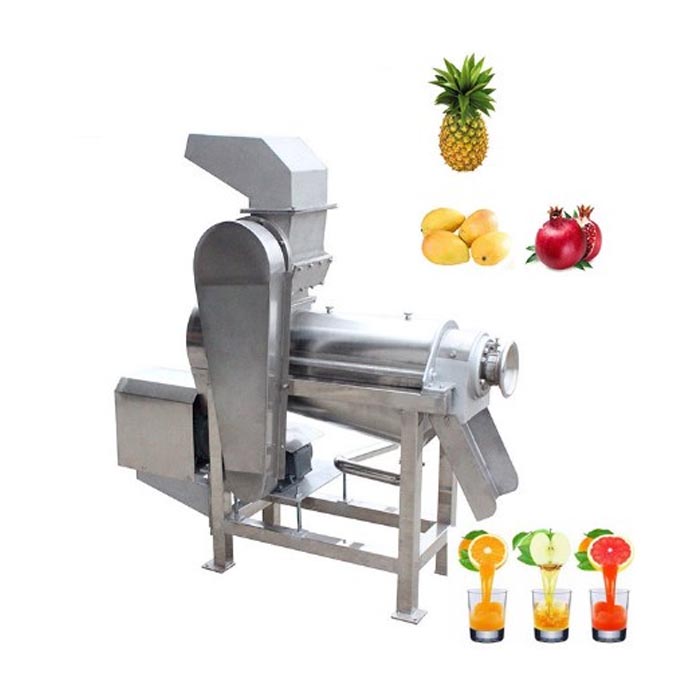

Commercial Fruit Juice Making Machine with Crushing Function
Brief introduction:
It is suitable for many kinds of fruits and vegetables, Fruits like: Coconut meat, apple and pineapple, pears, orange, Grape strawberry,etc.
Main Features:
1. Full 304 food grade Stainless steel for contact parts,durable, non-rust.
2. High capacity and easy to operate, 0.5T/H, 1.0T/H,1.5 T/H 3 capacity for your choice.
3. Easy to operate, the filter is removable and easy to clean.
4. The feed hopper can be customized according to customer's requirement.
5. Flexible to use,It can be stand-alone operation, but also can connect production.
6. High efficiency, low noise,stable performance.
7. With crushing function, can crush big particle before squeezing, so that to to get higher juicing output, and reduce raw material waste.
Technical parameter:
Model | Capacity (kg/h) | Power (kw) | Voltage (V) | Screw diameter | Dimention (mm) | Weight (kg) |
OC-SJ-0.5 | 500 | 2.2 | 380 or customize | 90mm | 700*450*950 | 83 |
OC-SJ- 1 | 1000 | 3 | 380 or customize | 120mm | 850*550*1150 | 130 |
OC-SJ- 1.5 | 1500 | 7.5 | 380 or customize | 175mm | 1250*700*1400 | 250 |
Working principle:
When the raw materials are added into the material feeding hopper, they receive pressure under the boosting of the spiral and the extracted juices will flow into the juice container through the filter screen, and the waste materials will be discharged through the ring interval formed between the spiral and the pressure adjusting taper part.
The movement towards the axial direction by the pressure adjusting head can adjust the size of interval so as to adjust the juice extracting rate.
Machine details:
