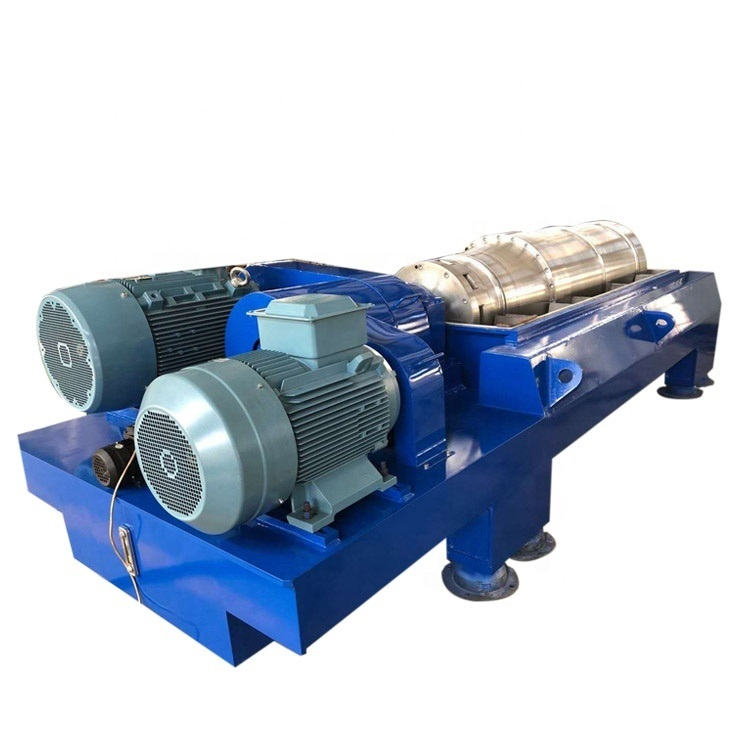

Industrial Price Decanter CentrifugeLW Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety or industries for separating all kindsof solid liquid suspension, defecating liquid phase with graded rains, and dehydrating sludge. 2 phase Decanter Centrifuge: After entering into the high-speed turning drum, the solid-phase particles in the mixed liquid run and settle on the drumwall under the action of greatest centrifugal force; the light liquid settles at the innermost place of the drum under minimum centrifugal force; same as the drum's turning direction, a screw feeder also turns at a high speed, and a constant speed difference is generated by the differential mechanism, then the liquid will be discharged by the liquid outlet. Application field1. Food
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries. Model | Bowl Dia | Bowl Length | Speed rpm | Capacity | Main Motor Power | Weight | Size | LW220 | 220 mm | 930mm | 5000 | 0.5-5 T/h | 7.5 KW | 1200kg | 2420*700*1010mm | LW300 | 300 mm | 1200mm | 4000 | 0.5-5 T/h | 11KW | 1500kg | 2680*830*1280mm | LW355 | 355 mm | 1600mm | 3800 | 1-10 T/h | 15 KW | 1850kg | 3490*860*1200mm | LW400 | 400 mm | 1800mm | 3650 | 2-15 T/h | 18.5KW | 2500kg | 3890*1020*1200mm | LW450 | 450 mm | 2000 mm | 3650 | 3-20 T/h | 22 KW | 3000kg | 4297*1080*1385mm | LW500 | 500 mm | 2000mm | 3000 | 5-45 T/h | 30 KW | 3800kg | 4330*1140*1470mm | LW530 | 530 mm | 2280mm | 2900 | 10-60 T/h | 45 KW | 5000kg | 4924*1170*1540mm | LW550 | 550 mm | 2200mm | 2780 | 15-80 T/h | 55 KW | 5580kg | 4395*1370*1655mm | LW580 | 580 mm | 2500mm | 2500 | 20-80 T/h | 55 KW | 6500kg | 5205*1270*1540mm | LW650 | 600 mm | 2800mm | 2270 | 30-120 T/h | 75 KW | 7000kg | 4200*1900*1350mm |
Koen Machinery Co.,Ltd, We are the professional manufacturer of centrifuge separator machinery, separation equipment,food machinery, liquid filling machine and packing machine. specializing in provide with the wholeset of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and chemical
project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries |
