Oil Water Separator

Material: SS304
Brand: Koen Machinery
Model: DHY
Detail

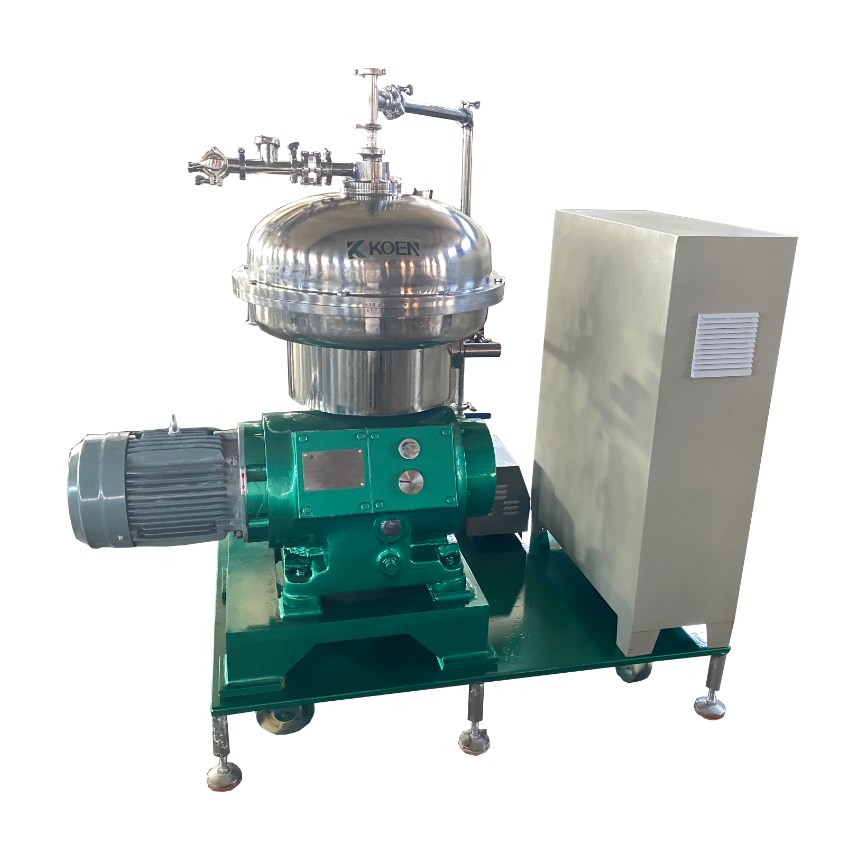

Oil Water Disc Stack Separator ----Factory direct sale



Disc stack centrifuge is a automatic working centrifuge with self cleaning , all contact parts made by SS304 or SS316L(Depend on customer requirements ) . widely used for milk cream separation , plant oil ,animal oil ,coconut milk separation   process.

Due to their special design, disk stack centrifuges work at a higher rotation speed than other centrifuges such as decanters. As a result, the centrifugal acceleration (gforce) generated by a disk stack centrifuge is significantly more powerful than in decanter centrifuges. Moreover, the disks included provide a large clarifying area. Thus, it is possible to separate ultra fine solid particles from a liquid and to separate liquid mixtures in an efficient way.


Features:
1.Machine starts the friction to start off, about six to ten minutes. the machine runs smoothly, low noise and vibration, the installation path is very easy to operate.
2.The bearings use imported FAG, transducer using Japan brand “ Fuji”, the main strengthenparts of Roller body and Roller cover use 2Cr13,and the other parts of contacted materials such as Disc all use SS304.
3.The Stainless steel cover use SUS304.
4.The base use casting steel, coating does the same way as ship bottom.

coconut oil.JPG


Technical parameters :

Model

DHY230

DHY300

DHY360

DHY500

Bowl Dia. (mm)

230

300

360

500

Bowl Speed (r/min)

10000

7609

7060

6600

G Force/Separation Factor

11200

8105

7800

9950

Capacity (L/h)

200

1000

2000

3500

Motor Voltage (kw)

1.5

4.0

7.5

15

Solid holding volume

0.6L

1.6L

4 L

8L

De-slugging mode

PLC

Output mode

Centripetal pump

Weight (Kg)

120

480

1300

1720

Dimension (mm)

700 x 550 x 800

850x850x1200

1500*1130*1640

1780×1500×1900
