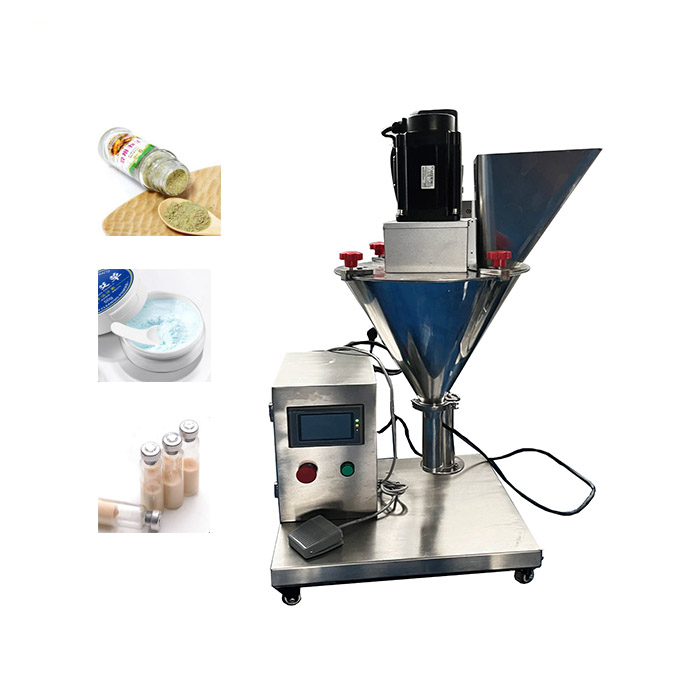

KN-0.5 Automatic Desktop Auger Screw Filling Machine
Brief introduction:
This is powder filling machine is suitable for quantitative filling of powder, powder materials in chemical, food, agricultural and relative products ; Such as milk powder, starch, pesticide, premix, additive, condiment, feed, enzyme preparation, etc;
Features :
1. The whole machine is made of high-quality stainless steel, which can effectively prevent materials from being polluted and meet the health and safety requirements of food QS and drug GMP.
2. The equipment has stable performance, convenient operation and maintenance, low failure and high efficiency.
3. Controlled by stepping motor and photoelectric switch,
4. Unlimited packaging containers (bags, cans and bottles);

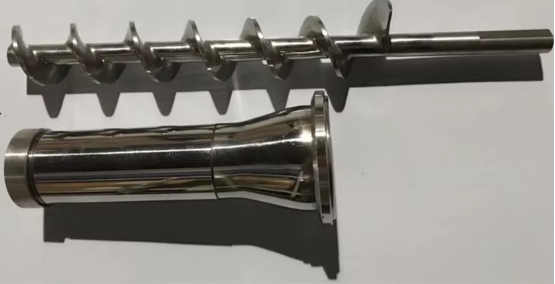

5. Screw can be used for accurate measurement when filling small dose range, and electronic weighing can be used for large dose range;
Technical parameters :
Model: | KN-0.5 |
Power Supply: | 220V/50hz 0.5KW |
Materials: | SS304 ( for material contact parts) |
Drive type: | Step motor |
Hopper volume: | 6L |
Filling weight： | 0.1-50g or customize |
Filling accuracy： | ≤±1% |
Filling speed: | 20-30 times/min |
Filling bottle diameter: | ≥5mm |
Overall size: | 500*400*800mm （including caster) |
Machine weight: | 50kg |

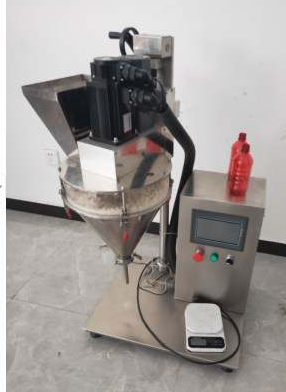

Machine details:
Application:
