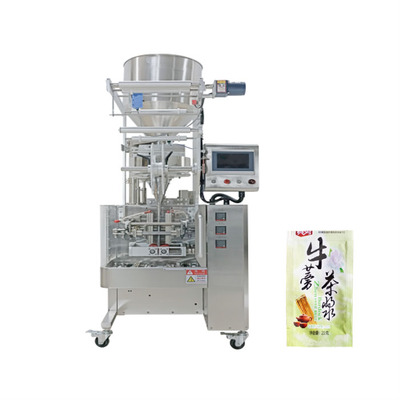

KN-61XCK measuring cup granule packing machine

Brief introduction:

1.The machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.

2.All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3.The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

4. Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,

                Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

Techncial parameter:

Model: YS-61XCK

Measuring Scope：1 - 100 g（3 - 100 ml）

Bag Size：( L )   :   30 - 170 mm

( W )   :   30 - 130 mm

Packing Speed ：30 - 70 bags/min

Bag Size：759 * 1100 * 1550 mm

Dimension ( L * W * H )

Weight：235

Sealing type:
