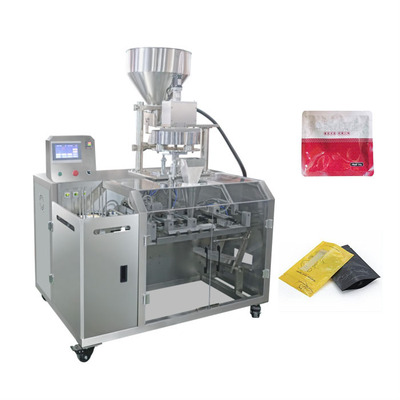

SP160K Horizontal pre-made bag Granule Packaging Machine

(Using Aluminum-plated and Plastic Film Packaging)

Brief introduction:

1、It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.

2、The packaging process is fully automatic without manual operation.it can be vacuum, filled with nitrogen, combinedfeeding.Different blanking structures can be selected according to the nature of the filling material, and can be configured according to customer requirements to print batch number and other functions.

3、It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.

4、Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

Technical parameters:

Measuring Scope：20-500g

Total Power   ：AC220V / 50 - 60Hz / 2.6kw

Gas source：≥0.6Mpa

Premade bag   ( L ) ：80 - 240mm    ; ( W ) ：65 - 170mm

Packing Speed：20 - 35bags / min

Dimension   ( L * W * H )：1525 * 1048 * 1876 mm

Weight   ：450 kg

Finished bag example:
