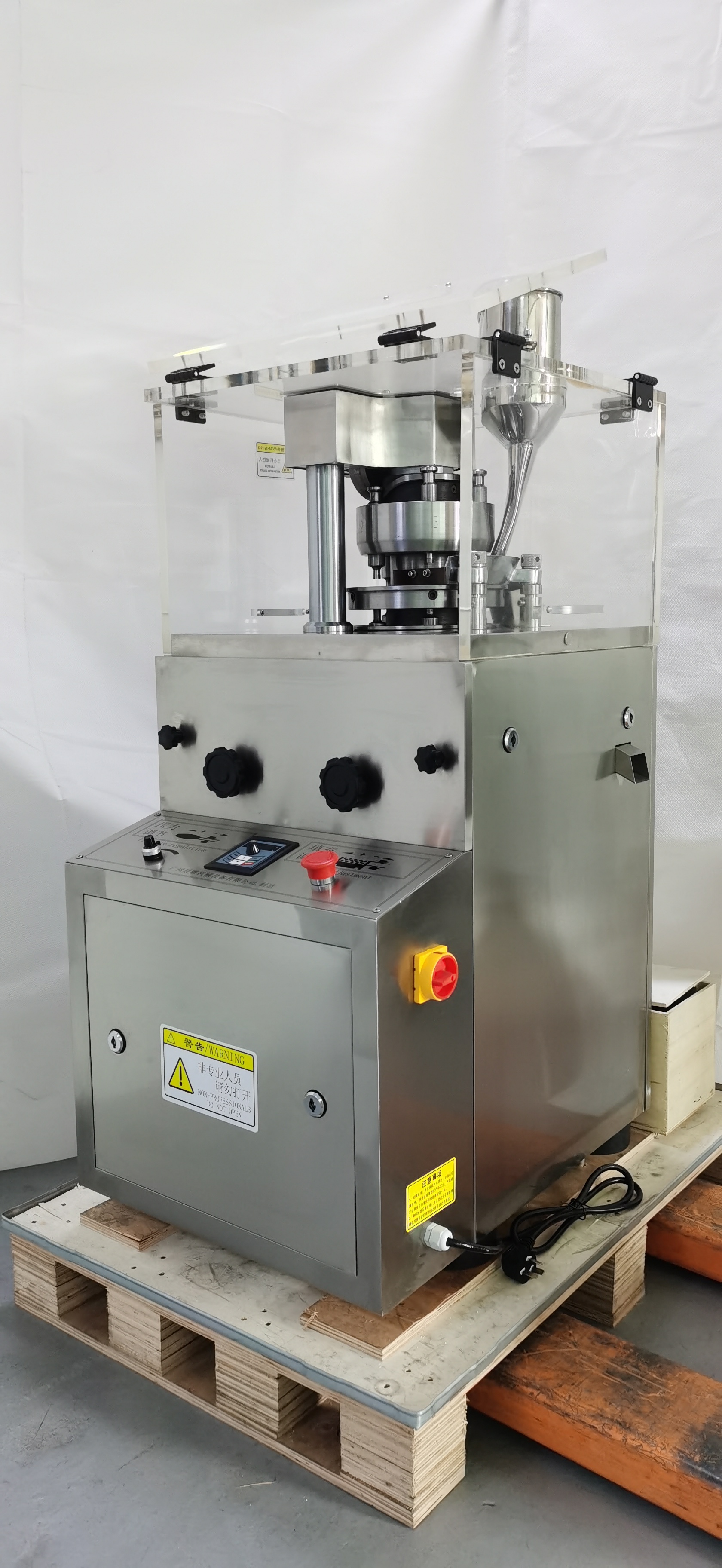

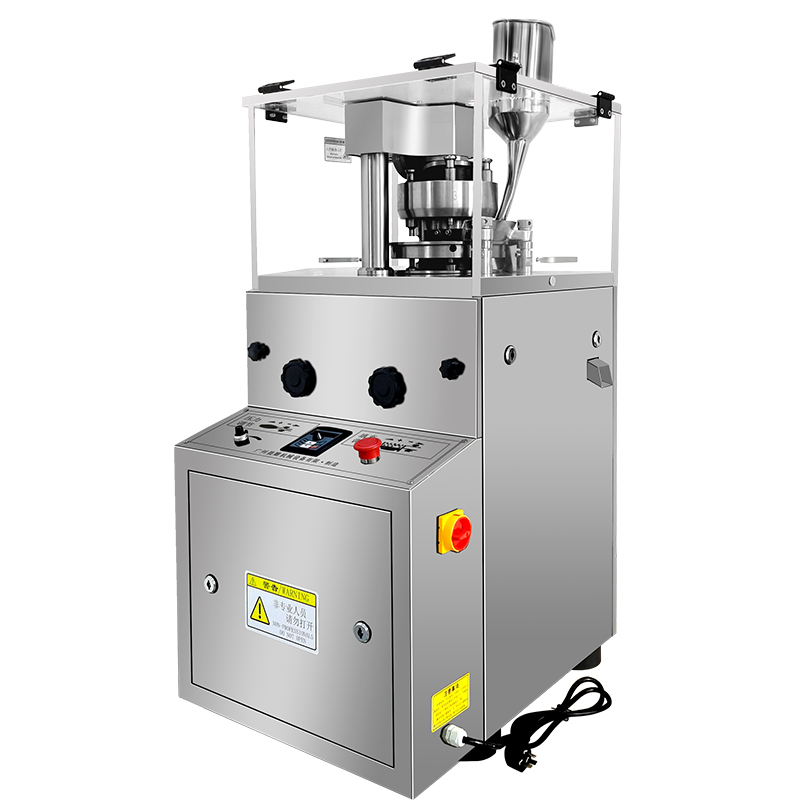

New design ZP5/7/9B rotary tablet press
Brief introduction:
This machine is a kind of single press type automatic rotary continuous tablet press developed by our company. It can press granular raw materials into various ordinary and special-shaped tablets. It is mainly used in tablet production of pharmaceutical industry, and also suitable for chemical, food, electronics, plastics, powder metallurgy and other industrial sectors.
Main Features:
1. Pressure is up to 60KN, strong stability, the fuselage is mainly made of stainless steel and aluminum alloy, making the fuselage more portable.
2. Humanized knurling screw operating table, more convenient to operate.
3. Stainless steel material, is in line with GMP production requirements.
4. Stainless steel shield can prevent raw materials from entering turntable and damage equipment.
5. Aluminum alloy sheet turbine box makes the fuselage lighter.
6. The magnetic sliding door is used on all sides of the turbine chamber of the motor, which is convenient for inspection and maintenance.
7. High quality aluminium alloy wheels, easy to move.
8. We added dust removing devices, which is old model not included.
Technical parameters:
Model | ZP-5B | ZP-7B | ZP-9B | ZP-11B | ZP-12B |
Punch&dies（sets） | 5 | 7 | 9 | 11 | 12 |
Tablet diameter(mm) | 4-18 | 4-16 | 4-16 | 4-12 | 4-10 |
Pressure(kn） | 60 | 60 | 60 | 60 | 60 |
Filling depth（mm) | 15 | 15 | 15 | 15 | 15 |
Tablet thickness（mm) | 6 | 6 | 6 | 6 | 6 |
Turntable speed(RPM） | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 |
Capacity（pcs/h) | 9000 | 13000 | 16200 | 19800 | 21600 |
Motor powder(kw） | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
Overall size（mm） | 470*640*1020 | 470*640*1020 | 470*640*1020 | 470*640*1020 | 470*640*1020 |
Voltage (V) | 220V | 220V | 220V | 220V | 220V |
Machine weight（kg) | 280 | 280 | 280 | 280 | 280 |
Notes:
The machine is constantly updated and the dimensions are subject to the actual.
The shapes of ZP-5 / 7 / 9 and zp-10 / 11 / 12 are the same.
The number of molds installed on the turntable is different.
If you want to thicken the tablet, you can heighten the turntable.
Please contact customer service for details
