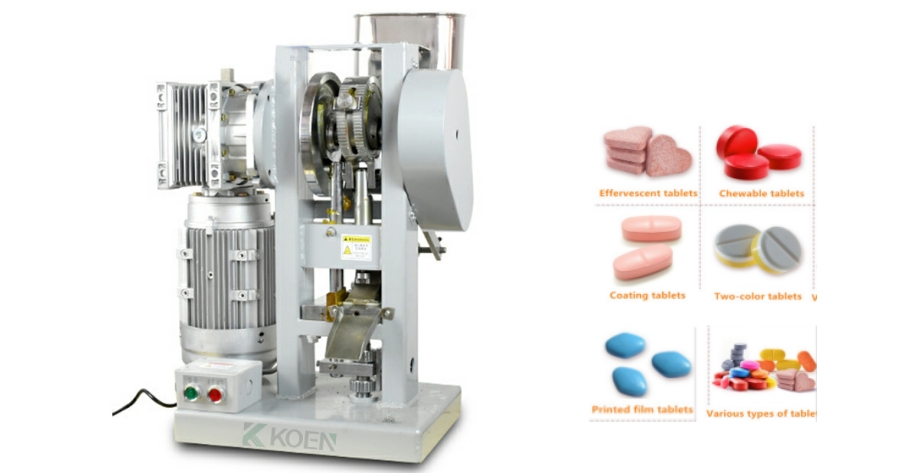

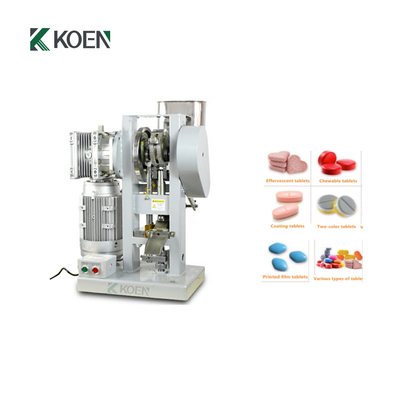

DP60D 25MM Big Size Soft Salt Tablet Maker Tablet Press Machine
Product introduction:
This machine is a mini type desktop tableting machine, driven by motor and can continually punch various tablets.the machine can punch fine grain and coarse powder into circular tablets or irregular shape tablets;and it can be used for laboratory production or small batch production of tablets,sugarcoated tablets,calcium tablets,irregular shapes,ect.
Main Features:
Applicable to press large grain solid, wet or extremely fine powder.
Simple in structure, convenient for operation and in high automatic degree.
Applicable to press tablets of different shapes.
Technical parameters:
| Model | DP-60D |
| Max. pressure (kn) | 80 |
| Max. dia. of tablet (mm) | 30 |
| Max. depth of fill (mm) | 25 |
| Max.Thickness of tablet (mm) | 12 |
| Voltage | 220V/50Hz 1 phase |
| Power of Motor(Kw) | 1.1 |
| Production Capacity (pcs/h) | 2150 |
| Machine Size(mm) | 550*450*800mm
|
| Net weight (kg) | 135 |
| Packaging size(mm) | 770*630*1170cm |
| Gross weight (kg) | 160 |
Notes:
1. The thickness of the tablets can be adjusted.
2. The shape of the tablets can be made by customizing different molds.
3. Please contact us for more details.

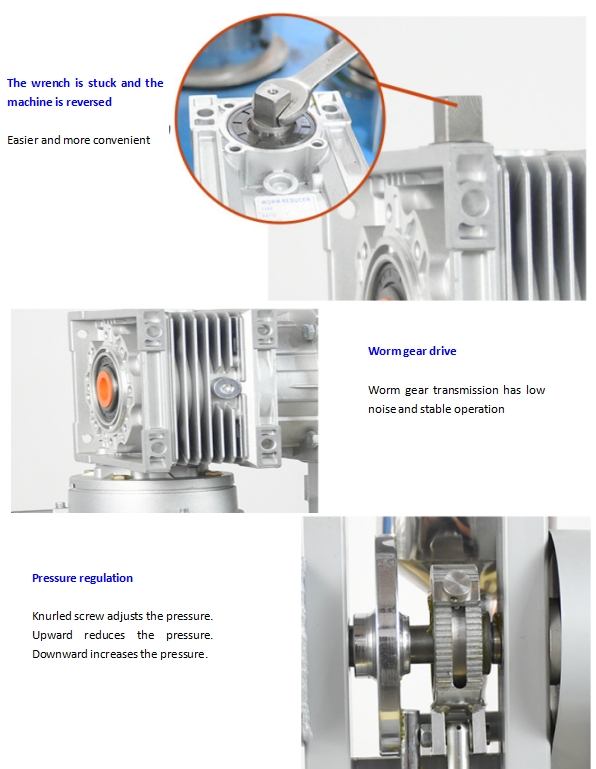

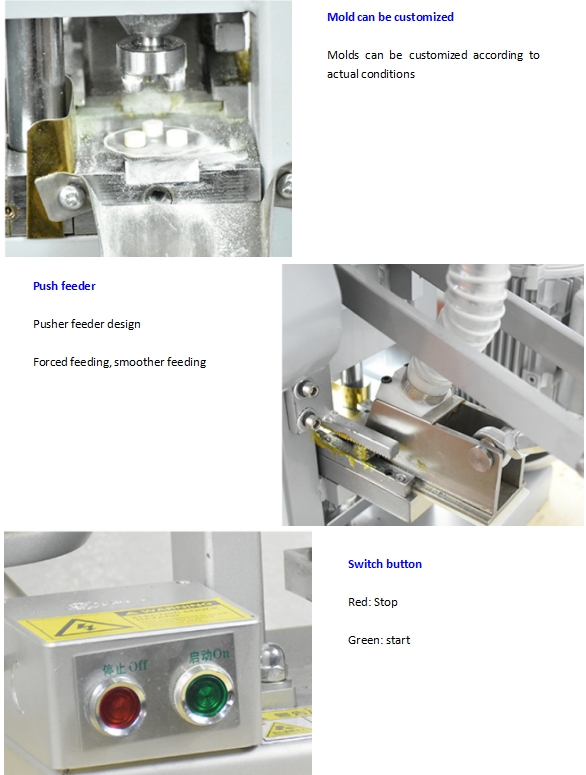

Machine details:

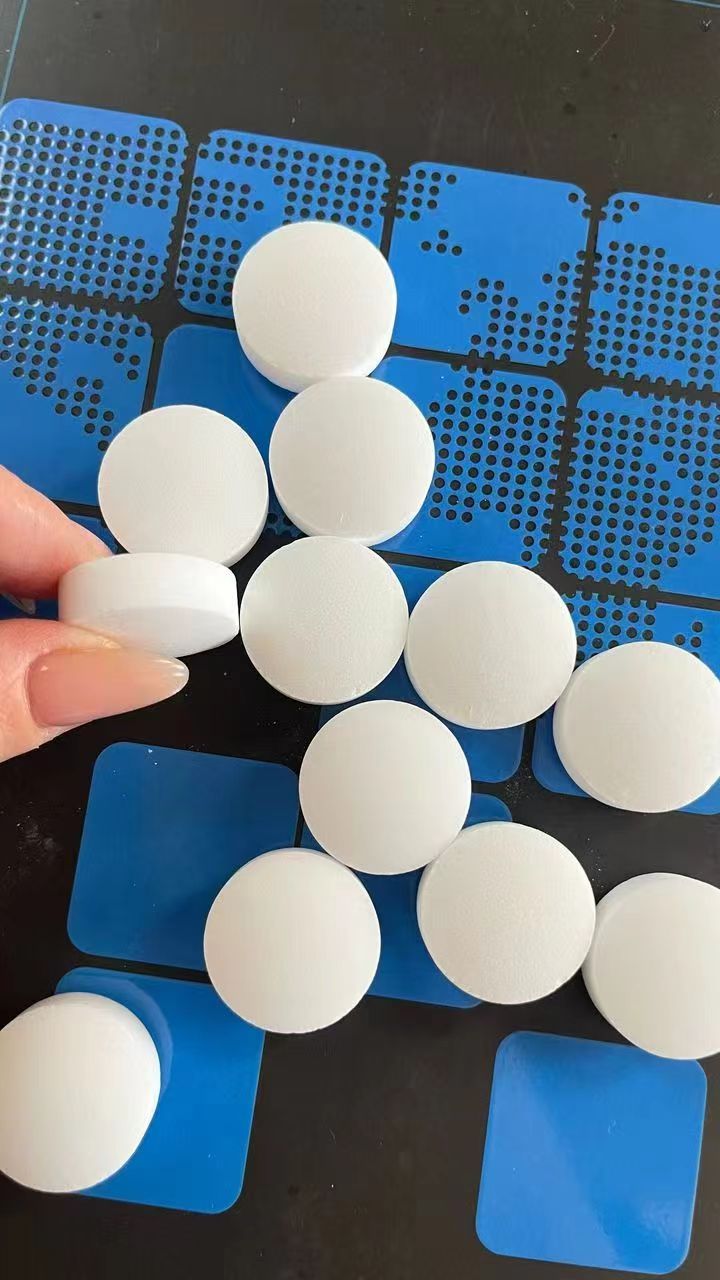

Finished products samples:
