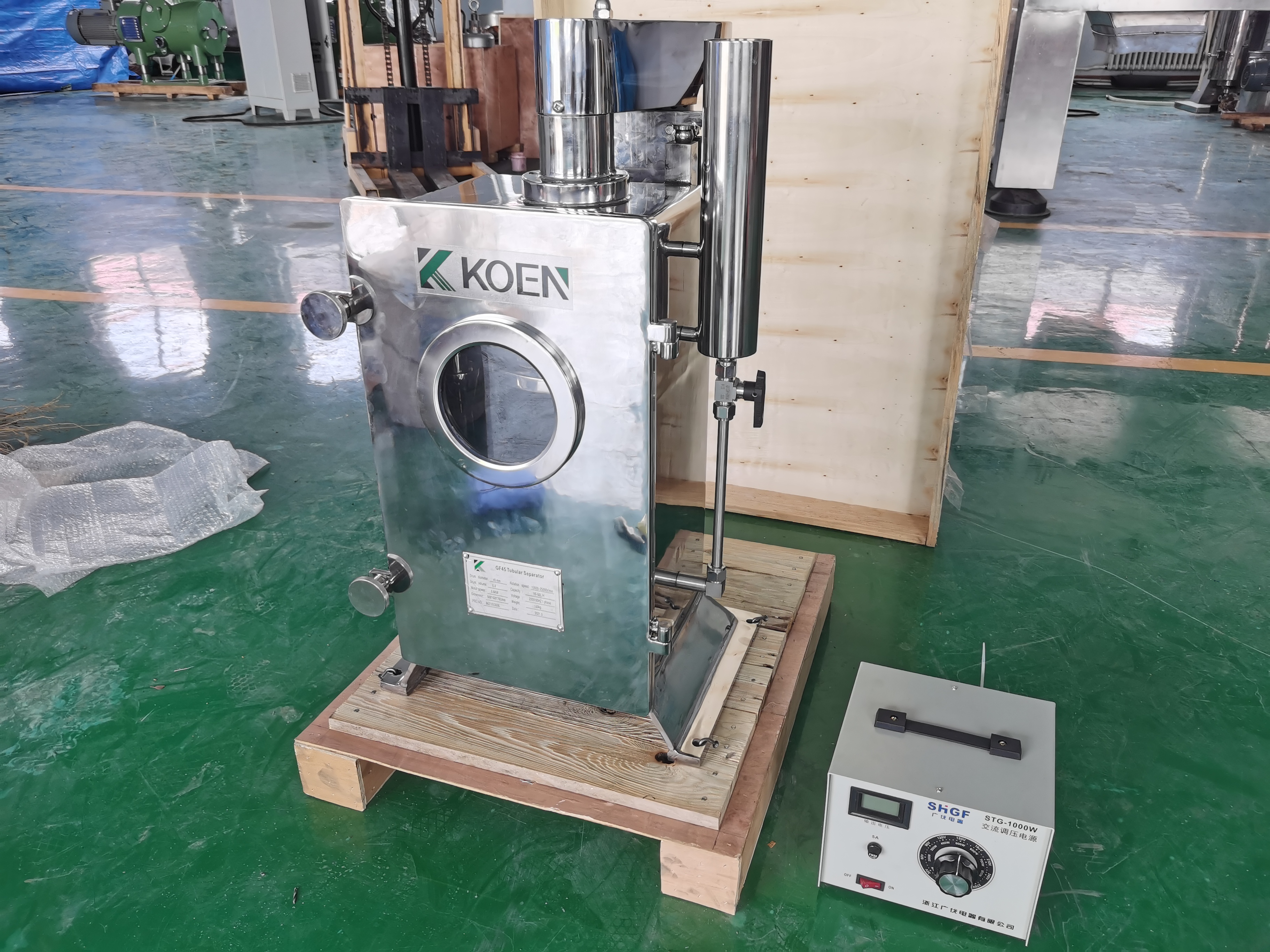

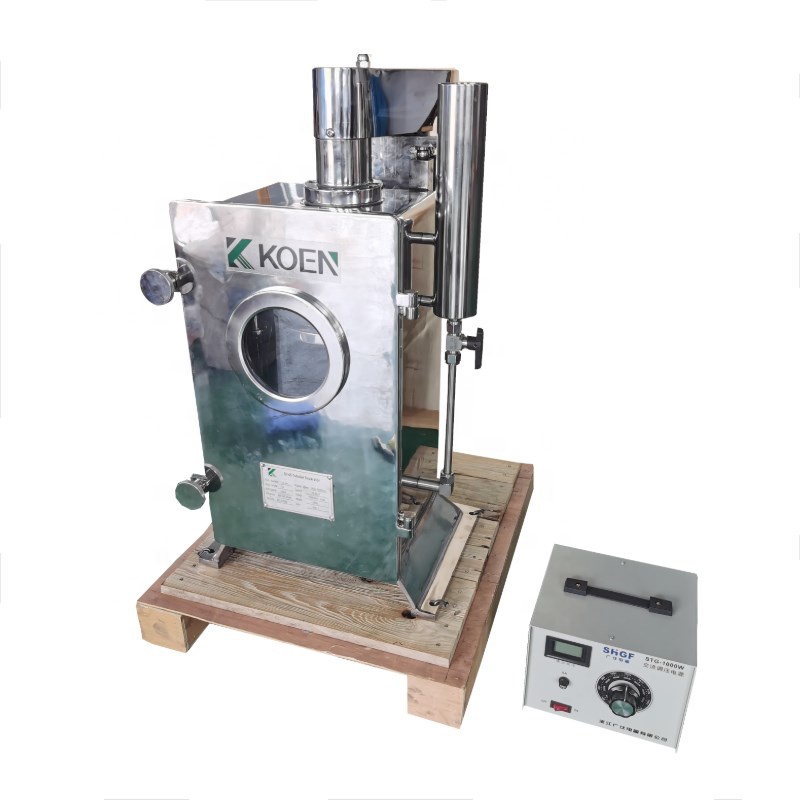

GF/GQ45 Lab Scale Tubular Bowl CentrifugeGF/GQ45 tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray,and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Throughthe conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density. Structure and principle: GF tubular centrifuge widely used in Coconut Oil , Olive Oil . Fish Oil ,Avocado Oil .Palm OIl ,Feul Oil production line, for oil water solid separation .As for manual discharging machine , tubular centrifuge is suitable for solid content lower than 2%. GQ tubular centrifuge is widely used for liquid-solid separation , capacity is about 10/h .As for manual discharging machine , tubular centrifuge is suitable for solid content lower than 2%.
Model | GF45 | Though output Capacity (L/h) | 100 | Bowl Speed (rpm) | 10000~28000 | G Force | 19800 | Capacity ( L/h ) | 10 | Bowl Volume (L) | 0.4 | Running Load (Kw) | 0.4 | Weight (kg) | 90 | Motor Power(kw) | 0.5 | Dimensions (mm) | 500*420*760 |
|
