Automatic Bottle  Liquid Filling and Capping  Machine

Material: SS304
Detail

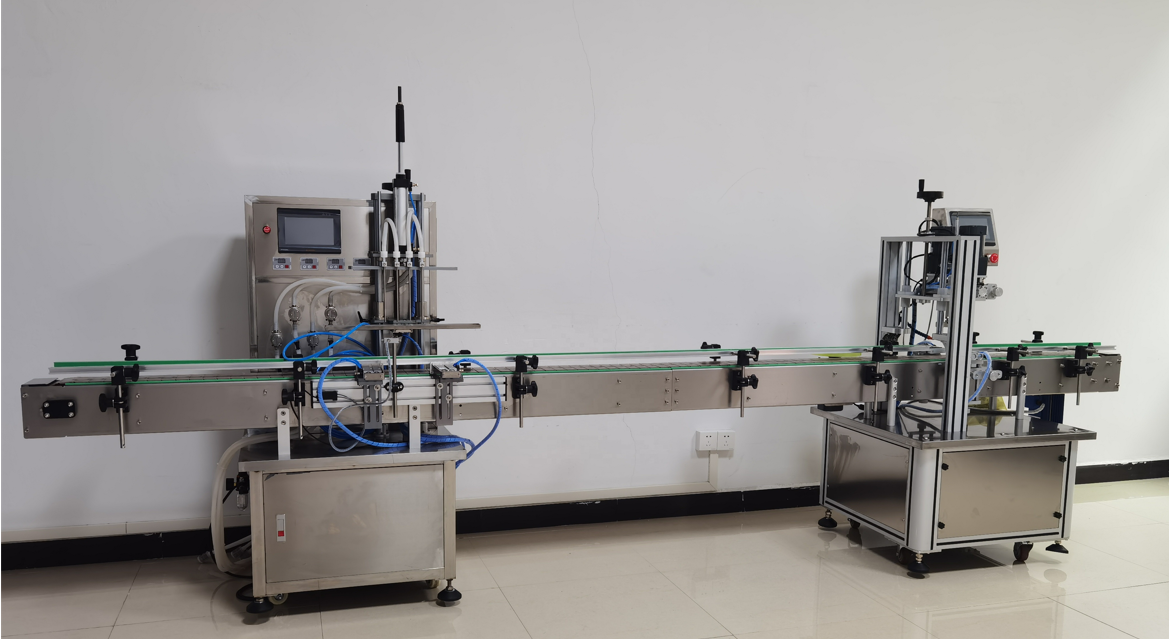

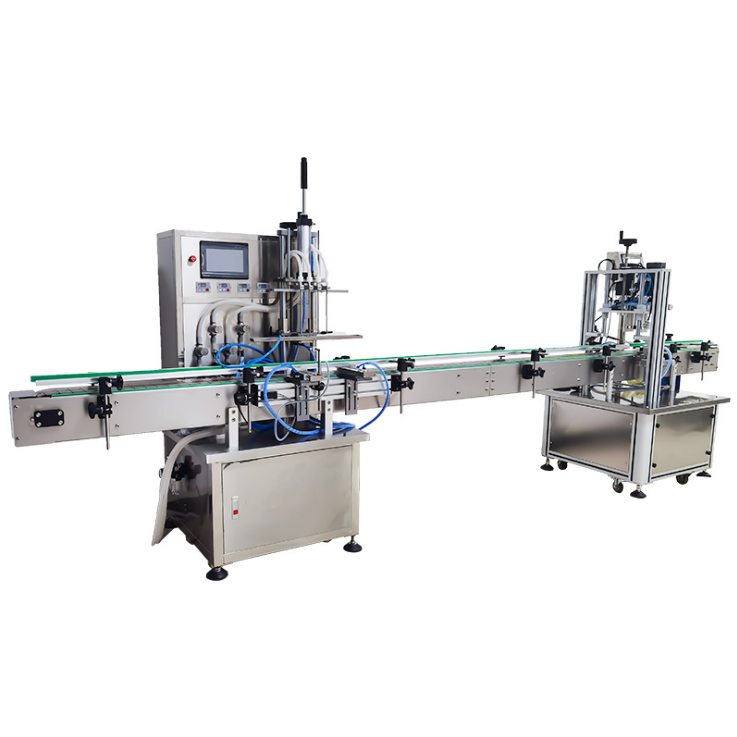

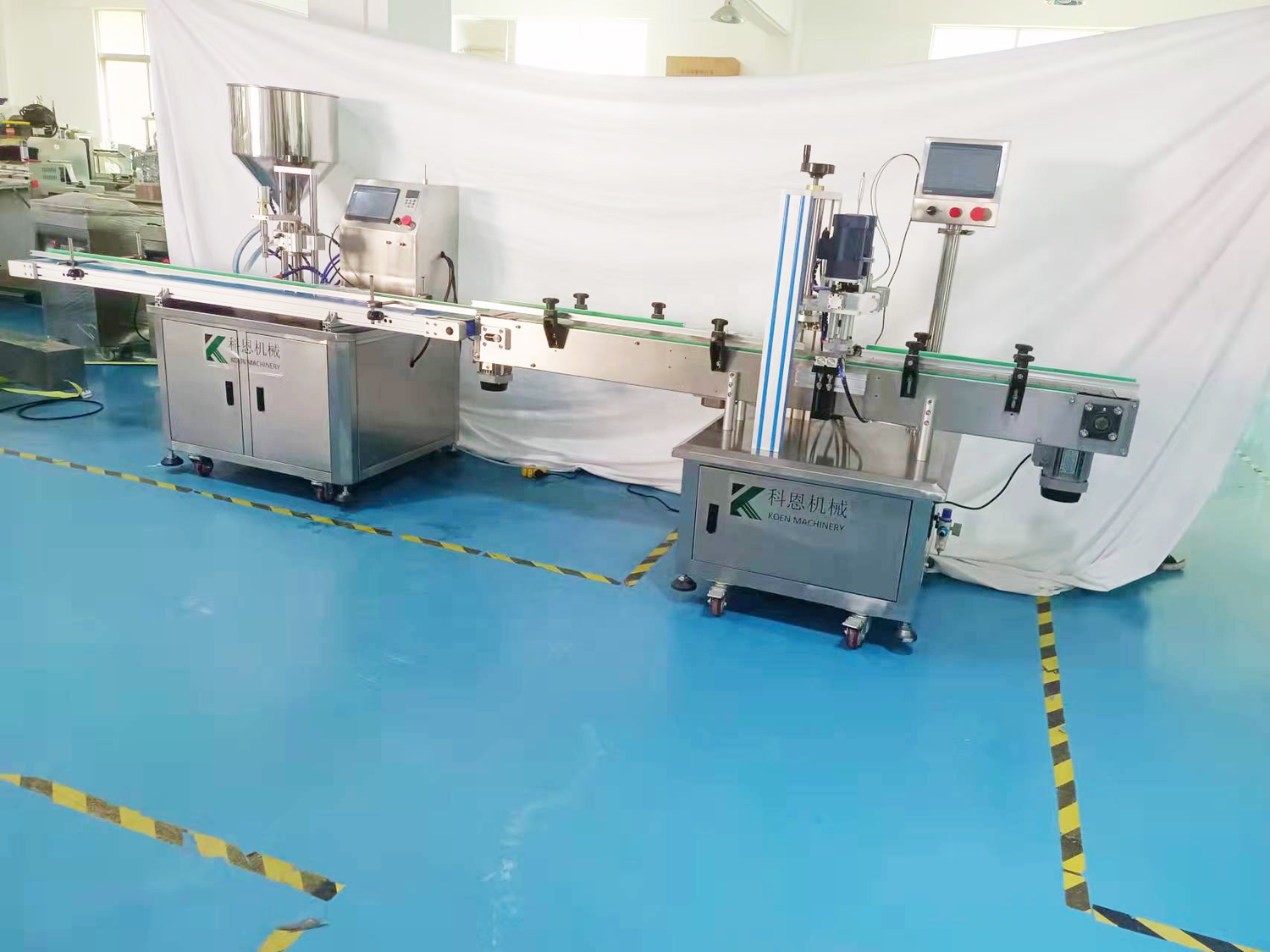

Automatic liquid filling capping machine

This production line can automatically arrange bottles,fill liquid and cap bottle,it helps to save production process and improve working efficiency.We can offer custom service for different kinds of materials,make these machines can match your material better. It is widely used in food,beverage,cosmetics ,face cream ,and pharmaceutical industries .


We have many type liquid filling machine , contact us free , for choose suitable machine

液体罐装机 (4).png液体罐装机 (6).png

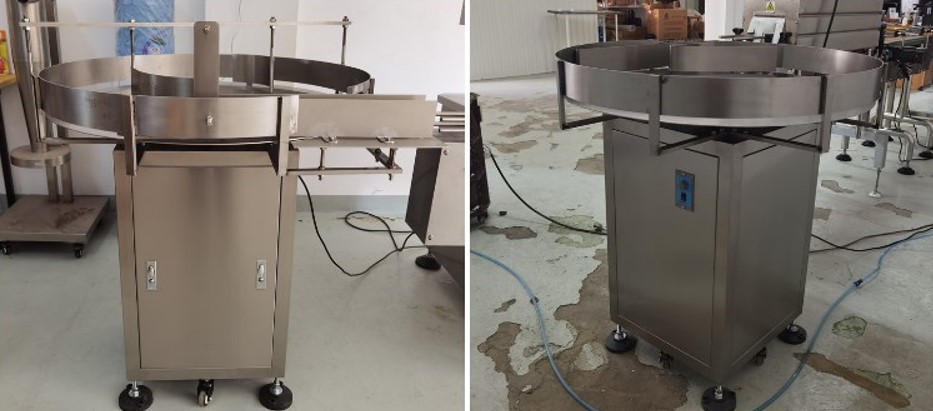

Bottle supply machine



Model

800

1000

Turntable diameter

800mm

1000mm

Suitable bottle diameter

20-100mm

20-100mm

Suitable bottle height

30-320mm

30-320mm

Working speed

40-60 bottles/min

40-60 bottles/min

Motor power

0,2KW

0,2KW

Net weight

109.5kg

135kg

Packing size

115*100*132cm

135*131*135cm

G.W

155kg

180kg

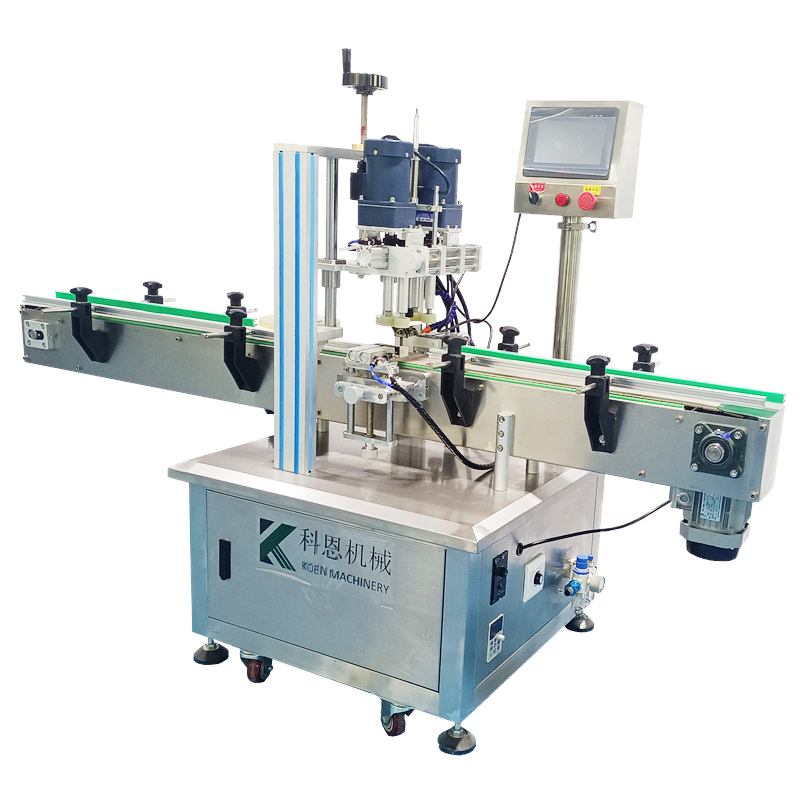

Bottle Capping Machine

液体罐装机 (1).jpg


Machine Model

XG440D

Working voltage

AC220V/110V 50-60HZ

Bottle height

≤200mm

Bottle caps diameter

customize

Working speed

20-30 bottles/minute(depending on bottle and caps)

Working pressure

0.4-0.6 MPa

Conveyor size

100mm(W)*1950mm(L)

Package size

About 2000*820*1800mm

Package weight

About 380kg

Packing size

About 2000*820*1760mm

Net weight/Gross weight

About 230kg
