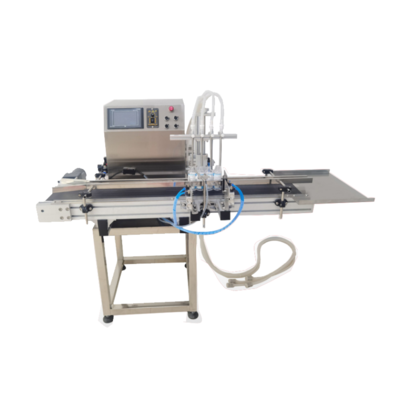

Magnetic Pump Liquid Filling Machine

Material: SS304
Detail

Automatic liquid filling capping machine


Full automatic magnetic pump 4 head filling machine is very efficient with high cost performance.It is widely used in medicine daily chemical and other industries such as essential oils,perfumes,juice liquid etc.Machine with magnetic pump is a good choice for low viscous,a little foamy liquid.316 stainless steel pumpcan use for very high temperature liquid fill.


It is suitable for various corrosive,low viscosity and non-particulate liquids, such as:various chemicals (medicine oil, medicinal liquor, alcohol, eye drops, syrup), chemicals(solvent, acetone), oil (edible oil, essential oil) ), cosmetics (toner, makeup remover,spray), food (100 degree high temperature, such as milk, soy milk), beverage (juice, fruit wine), seasoning (soy sauce vinegar) and other non-particulate liquid; high and low foam liquid ( Care solution, detergent)


磁力泵液体罐装机 (1).png

We have many type liquid filling machine , contact us free , for choose suitable machine

液体罐装机 (6).png


Machine model

4 head liquid filling machine

Power supply

110/220V 50-60HZ 300W

Maximum flow velocity

6000ml/min (Each nozzle and based on water )

Working speed

20-30 bottles/min

Air pressure

0.3-0.4mpa

Filling accuracy

≤±1%( for water)

Dimension of filling nozzle

Standard 8mm and 6mm

Count range

1-99999 times

Package size

About 1500*650*1400mm

Net weight/Gross weight

About 200kg/230kg



Bottle supply machine



Model

800

1000

Turntable diameter

800mm

1000mm

Suitable bottle diameter

20-100mm

20-100mm

Suitable bottle height

30-320mm

30-320mm

Working speed

40-60 bottles/min

40-60 bottles/min

Motor power

0,2KW

0,2KW

Net weight

109.5kg

135kg

Packing size

115*100*132cm

135*131*135cm

G.W

155kg

180kg


Bottle Capping Machine

液体罐装机 (1).jpg


Machine Model

XG440D

Working voltage

AC220V/110V 50-60HZ

Bottle height

≤200mm

Bottle caps diameter

customize

Working speed

20-30 bottles/minute(depending on bottle and caps)

Working pressure

0.4-0.6 MPa

Conveyor size

100mm(W)*1950mm(L)

Package size

About 2000*820*1800mm

Package weight

About 380kg

Packing size

About 2000*820*1760mm

Net weight/Gross weight

About 230kg
