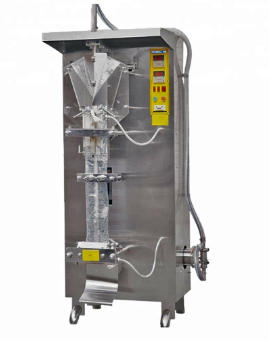

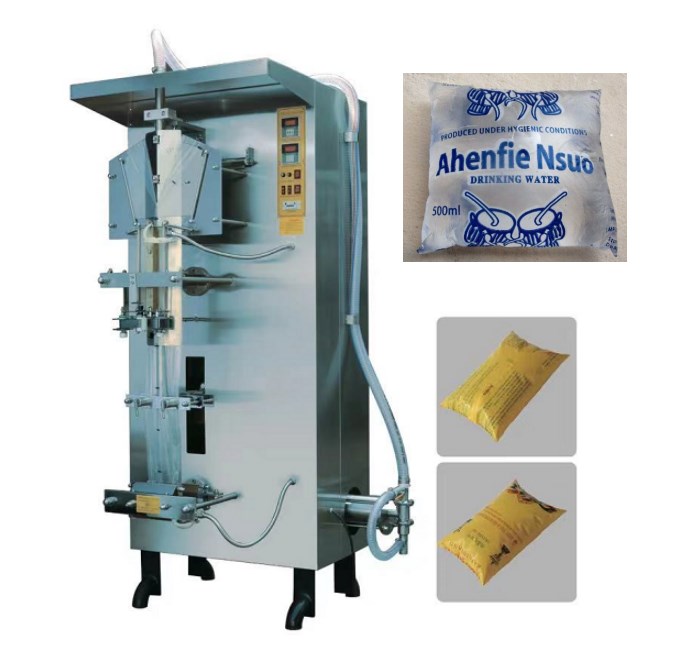

SJZF500/1000A Water Liquid Sachet Packing Machine
Application:
This kind of liquid packaging machine is suitable for packing food, medicine, chemical and other liquids. Such as milk, wine, water, soy milk, soy sauce, vinegar. It can complete bag making, metering, filling, sealing, cutting, counting and batch number printing automatically .
Feature:
1.Bag length and packaging quantity can be adjusted manually.
2.The operation is simple.
3.Designed for back-side sealing type, pillow style.
4.Optional accessories: rotor pump feeding, ribbon date printer, conveyor belt, weight detector can be installed as per your request.
5. PE film roll customization service is provided, please send us your design drawings in AI format.
Technical parameters:
Model: | SJZF-500A | SJZF-1000A |
Filling range : | 50-500ml | 200-1000ml |
Power : | 220V /50HZ 1.5KW | 220V /50HZ 2.5KW |
Packing speed : | 33-37 pcs/min | 19-22 pcs/min |
Suitable bag length: | 40-150mm | 40-175ml |
Film width: | 100-320mm | 100-380mm |
Driven type: | Pneumatic | Mechanical |
Bag sealing type: | Back-side sealing | Back-side sealing |
Cursor positioning device: | Yes | No |
Machine size: | 500*700*1700mm | 500*700*1700mm |
Machine weight: | 275KG | 380KG |
Optional items: Rotor pump, Ribbon printer, take-away conveyors, weight checker. |
