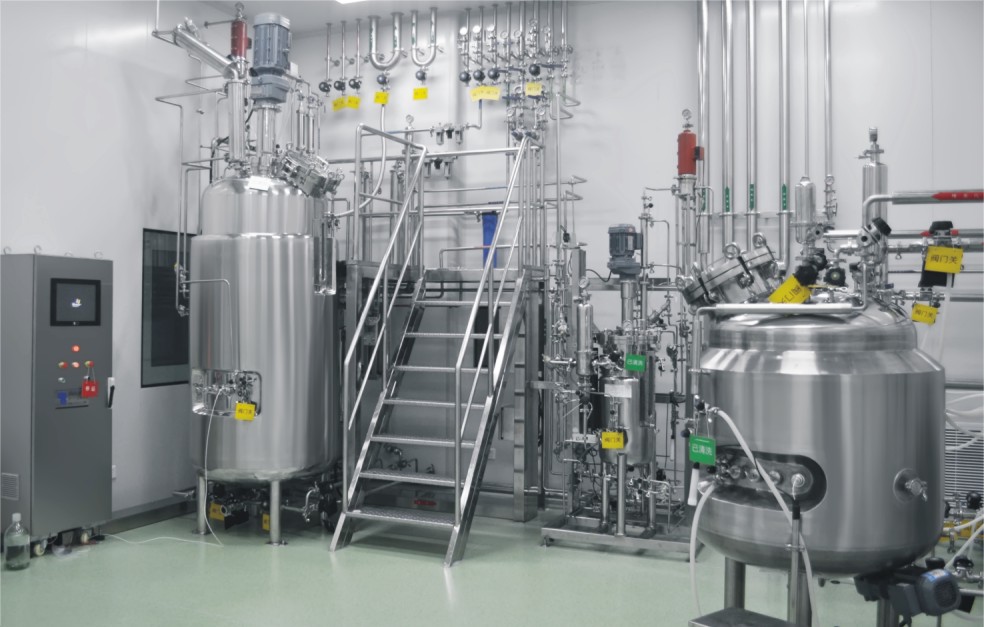

Stainless Steel Biological Bacteria Fermentation Tank1. Tank system:
Tank material: S31603 or S30408 stainless steel; tank design pressure: 0.3MPa; jacket design pressure: 0.35MPa;
Tank structure: special sampling and discharge valve with fermenter, with standard temperature, PH, DO sensor jack;
Jar cover structure: standard foam electrode socket 1; light mirror mirror mouth 1; general feeding interface 3; inoculation mouth 1; vent 1;
Surface treatment: polishing of stainless steel inner and outer mirror surface, polishing accuracy Ra0.4;
2. Sterilization method: in site steam sterilization;
3, mixing system: three layer six flat leaf fermentation special standard paddle; control range: 50~300rpm, control accuracy: + 1%;
4, temperature control: cooling water temperature +5~65 degrees; accuracy: + 0.1;
5, PH control: Switzerland Mettler PH electrode and shielding wire: scope: 2~12PH, control accuracy; + 0.02PH;
6, dissolved oxygen control: Switzerland DO electrode and shielding wire: scope: 5~100%, control accuracy: + 2%;
7, foam control: automatic detection foam adding defoaming agent: sensitivity 100~100000;
8, feed control: peristaltic pump automatic flow; range: 0~5L/min, control accuracy: + 2%;
9, air flow control: manual adjustment of the rotor flow meter; range: 0~5000L/min;
Model: KNBIO -GJ/GC/GJG/GJGG (off-site sterilization autoclave)
Total volume: 1L, 2L,5L, 10L,20L,30L,40L... Working volume: 45%-70% Material: Glass and 316L stainless steel
The diameter and hight ratio: 1:2-3
Mixing method: magnetic stirring or mechanical stirring one of the two optional
Sterilization method: on-site sterilization auto control or manual control
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computerthrough the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, antifoam oar
AC electrical machine: infinite speed variation; rpm in the fermenter: 70~1200rpm±1%, the height of the stirring oar can be adjusted, too.
Temperature detection and control Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling water+5℃) to 65℃±0.1℃,temperature probe(US) pH detection and control 2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). fermenter is autocontrolled with peristaltic pump DO detection and control 0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland) Feed control：Fermenter uses peristaltic pump (Longe) to add meterials Antifoam control：Tested by sencor and added antifoamer by peristaltic pump
Intake control (air) manual control rotameter
Pressure detection and control：Pressure Control: Pressure meter and digital display and digital remote control, pressure control
