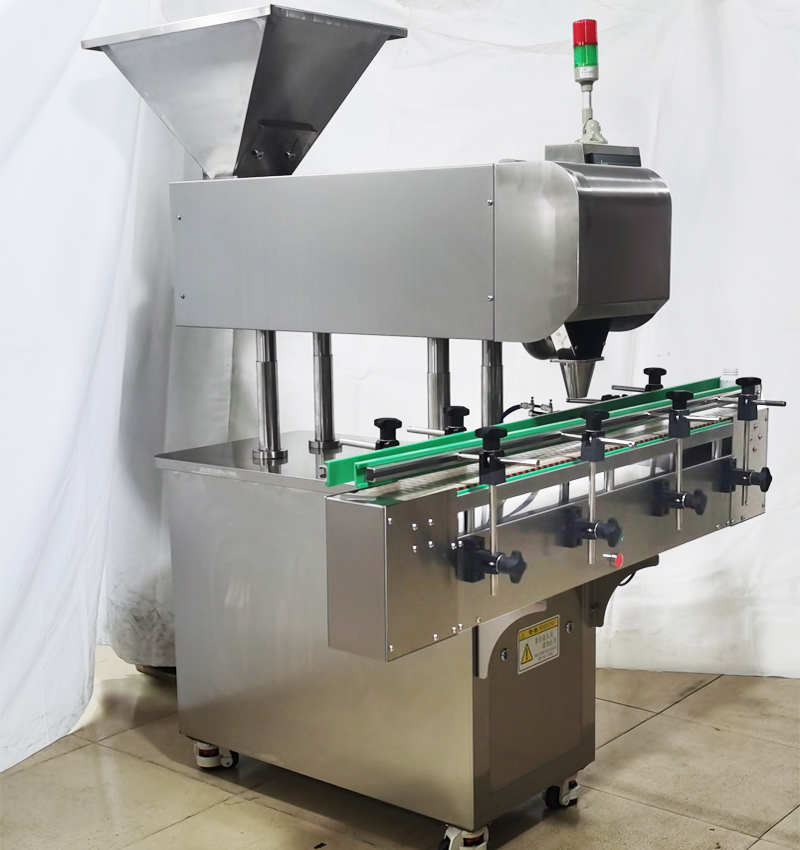

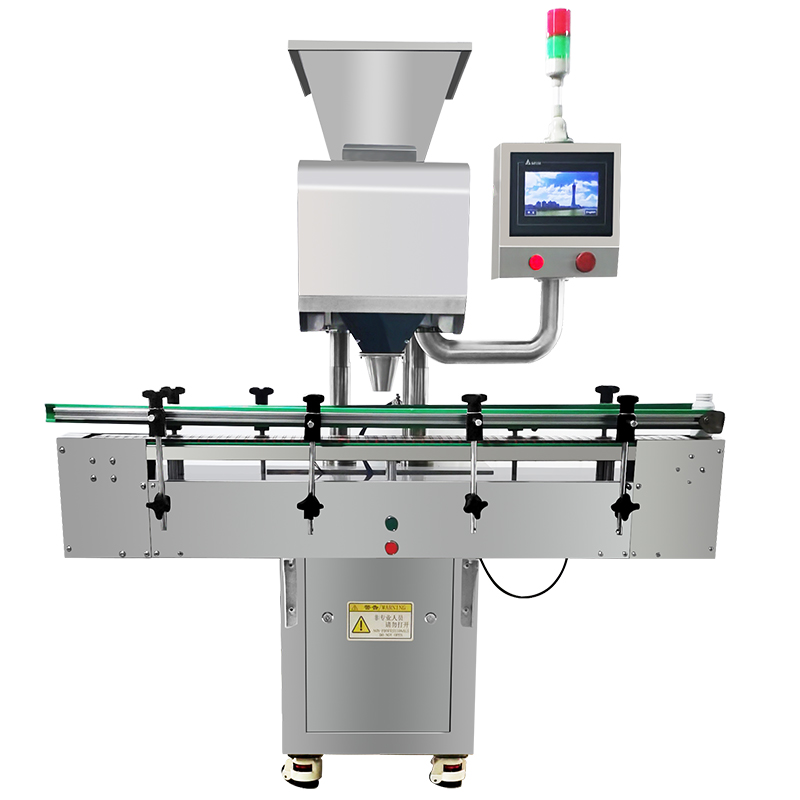

SPJ-8 multi-lane automatic electric tablets/capsules counting machine
Brief introduction:
SPJ-4/8 tablets/capsules counting machine is used for counting and packing tablets
(including special-shaped tablets), hard capsules, soft capsules (various forms of transparent
and opaque) pills and other solid particles in the range of 3-20 mm.
Characteristic:
1. High compatibility, high accuracy, wide range of applications, can be tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque) pills count bottles;
2. The applicability of the company's original anti high dust photoelectric sensing technology, in the case of high dust, can work steadily;
3. Vibration blanking, unique patented flip plate packing mechanism, no damage to drugs;
4. A high degree of intelligence, with no bottle number, fault selftest, and other detection, alarm and control functions;
5. Automatic operation, and upper and lower process intelligent joint control, good coordination, no special operation, save labor;
6. Small footprint, low cost;
7. Easy to change products and easy to disassemble without anytools, convenient and quick;
8. The structure is exquisite, there is no expensive wearing parts, maintenance costs are low;
9. Adopt man-machine interface control panel (Chu Moping), and control chip is imported.
Technical parameters:
Model | SPJ-4 | SPJ-8 |
Suitable bottles | 10-500ml round or square bottles | 10-500ml round or square bottles |
Suitable | Ø 5.5-20mm tablets Ø 3-20mm pills Ø 3-12 granules 00-5#capsules, soft capsules | Ø 5.5-20mm tablets Ø 3-20mm pills Ø 3-12 granules 00-5#capsules, soft capsules |
Production Capacity | 10-20 bottles/min (Depends on bottle specification, filling quantity and drug specification) | 10～30 bottles/min (Depends on bottle specification, filling quantity and drug specification) |
Material | 304 Stainless steel | 304 Stainless steel |
Setting range | 1-9999 | 1-9999 |
Voltage and power | AC220V 50Hz 0.6kw | AC220V 50Hz 0.6kw |
Accuracy: | ≥ 99.5% | ≥ 99.5% |
Vibration groove: | 2 stage | 2 stage |
Air source | 0.6Mpa | 0.6Mpa |
Overall dimension(mm) | 1250*1450*1450mm | 1250*1450*1450mm |
Machine weight(kg) | 280kg | 280kg |
Packaging dimension(mm) | 1270*1470*1470MM | 1270*1470*1470MM |
Gross weight(kg) | 330kg | 330kg |
Application:
