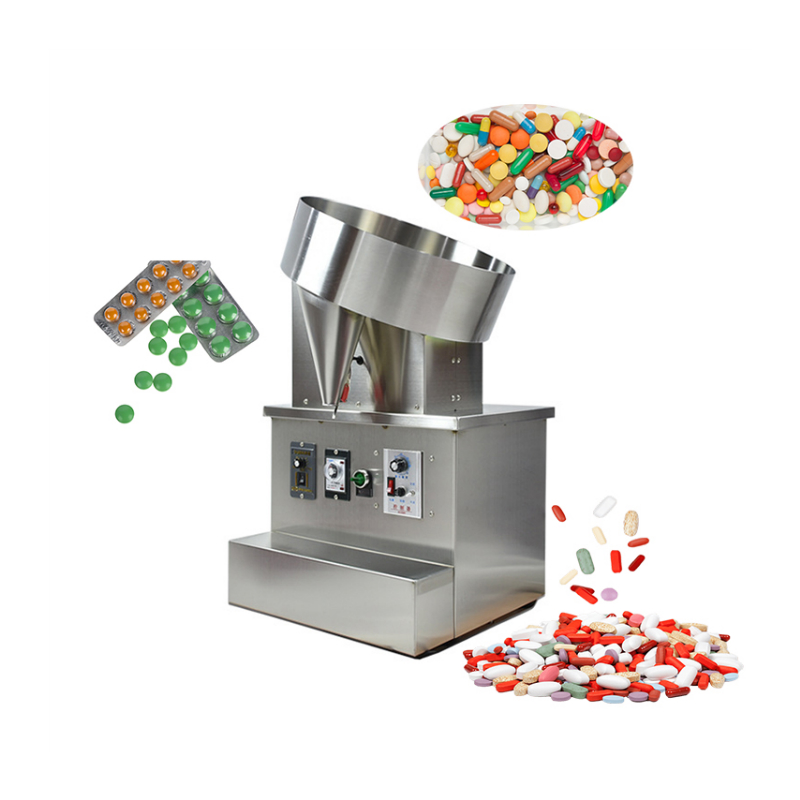

SP100-2 semi-auto capsule counter
I.Brief introduction:
1 Scope of application:
This machine is mainly used for counting and bottling of various types of capsules, tablets, soft capsules, honey pills and other articles with regular shape!
2. Introduction of capsule counting machine
This counting machine is small in size, light weight, low noise, counting accuracy, simple operation, simple maintenance. Drug contact parts made of stainless steel to ensure the packaging items clean, in line with the GMP requirements; Is for capsule, tablet, granule such as drugs or food to count, bottle filling, bag ideal special equipment. It USES electromagnetic vibration number, bottle to the feed opening hours notreel rotation, feed opening the bottle placed, motor driver number plate rotating make medicine automatic into the bottle; Count offer convenient and quick replacement of different specifications and need no other adjustment. This machine is the present domestic count the most small, advanced machinery, beautiful and affordable count bottling, bagging equipment.
3. Features of pill counting machine
1. The vibration of the different design: less noise 20 decibels (minimum number of capsules), vibration effect is better!
2. Improved the slope of hopper, no longer rely on the damper to block unwanted medicines, solved with baffle block easily card drugs shortcomings.
3. Added some depth to the hopper, hopper can put more raw material!
4. Unique design, operators can convenient observation to confirm the accuracy of the number of grains!
5. Bottling speed faster, the fastest can be up to 36 bottles/minutes!
6. High degree of finish of several holes, more beautiful, feed faster, number of grain of accuracy and better!
7. The whole design more beautiful!Adopts 304 stainless steel, including hopper, hopper bottom plate is 304 stainless steel material, is the only one hopper bottom plate is adopted 304 stainless steel manufacturers.
II. Technical parameter
Model | SP100-2 |
Material | 304 stainless steel (main body)+plexiglass (counting plate) |
Dia. of counting slide | 400mm |
Hole No. of counting slide | 00#2-200 0#2-250 1#2-300 customized |
Counting range: | 00# capsule: 1-100 capsules / bottle 0 # capsule:1-120 capsules / bottle 1# capsule: 1-150 capsules / bottle tablets according to size 10-500 tablets (round tablets with diameter of 12mm and thickness of 5mm can count 500 tablets / bottle / time). 1 bottle per half turn. |
Production efficiency | 10-500pcs/min |
Motor power | 80W |
Voltage | 110V/220V |
Net Weight | 48KG |
Dimensions (L x W x H) | 420*420*780mm |
Gross Weight | 60KG |
Packaging Size (L x W x H) | 520* 530* 880mm |

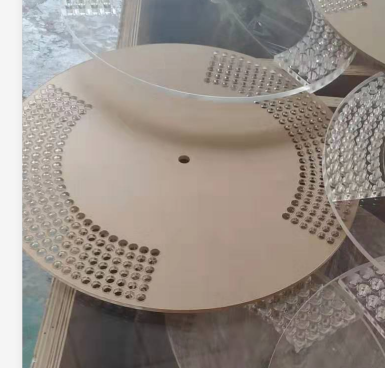

Notes: The counting plate on the machine can only count one size capsule or pill, if you want to count other size capsules or tablet, please order extra counting plate.
III. Machine details
