SPJ-300 semi-auto pill counter
Brief Introduction:
SPJ-300 desktop electronic pill counting and filling machine adopts vibration blanking, color touch screen man-machine interface, vibration blanking and optical fiber system counting function, intelligent control, and is a desktop automatic counting and filling equipment integrating optical fiber sensing. It can set the number of filling grains and bottles, which has the characteristics of small volume, light weight, convenient installation, simple operation, fast and accurate counting and filling, etc.It is suitable for accurate and rapid filling of small quantities of tablets, capsules, pills, candy, etc. in pharmaceutical, food, health products, hospitals and other industries.
Main Features:
1. Set the counting number of tablets arbitrarily among 0-9999.
2. Material is Stainless Steel SS304 and meets GMP design.
3. Rotary counting design with fast and smooth operation.
4. Highly counting accuracy with special electrical eye protection device.
5. Dust removal device inside for smooth and efficient counting.
6. Easy control variable counting speed by replacing bottles manually.
7. Vibration feeding design, the vibration frequency of the hopper can be adjusted according to whether sending tablet or not.
8. Easy operation and no adjustment is required as changing tablets.
Technical Parameters:
Model: | SPJ-300 |
Production capacity: | 300-1500 pcs/ min |
Use molds: | 00-5#capsules, 4-18mm tablets |
Voltage: | 220V / 110V |
Frequency: | 50Hz / 60Hz |
Total power: | 200W |
Machine weight: | 30kg |
Overall dimensions: | 570*300*660MM |

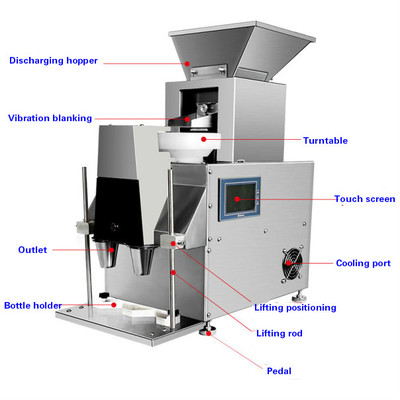

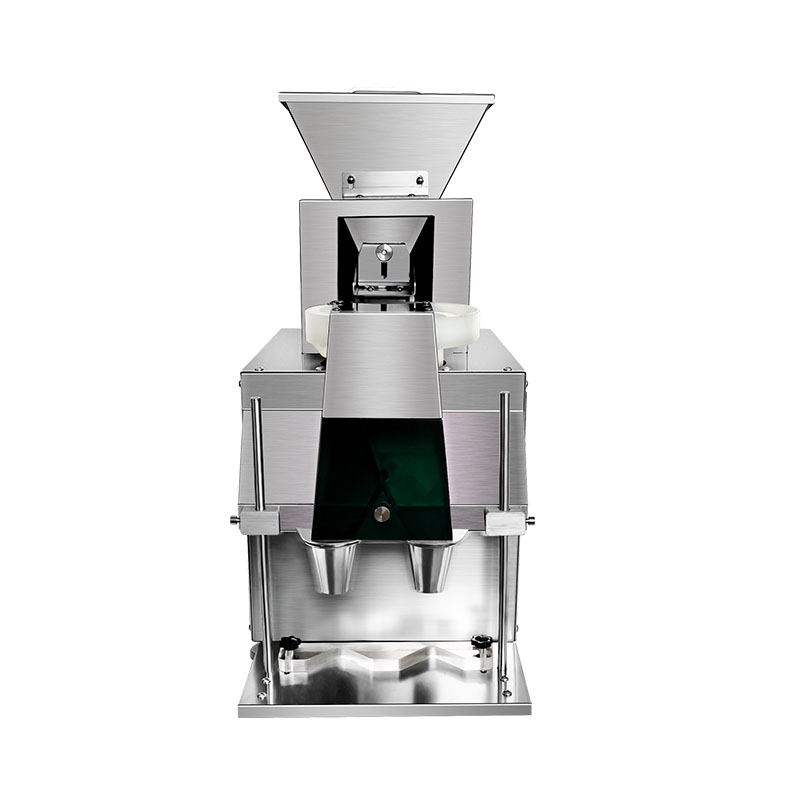

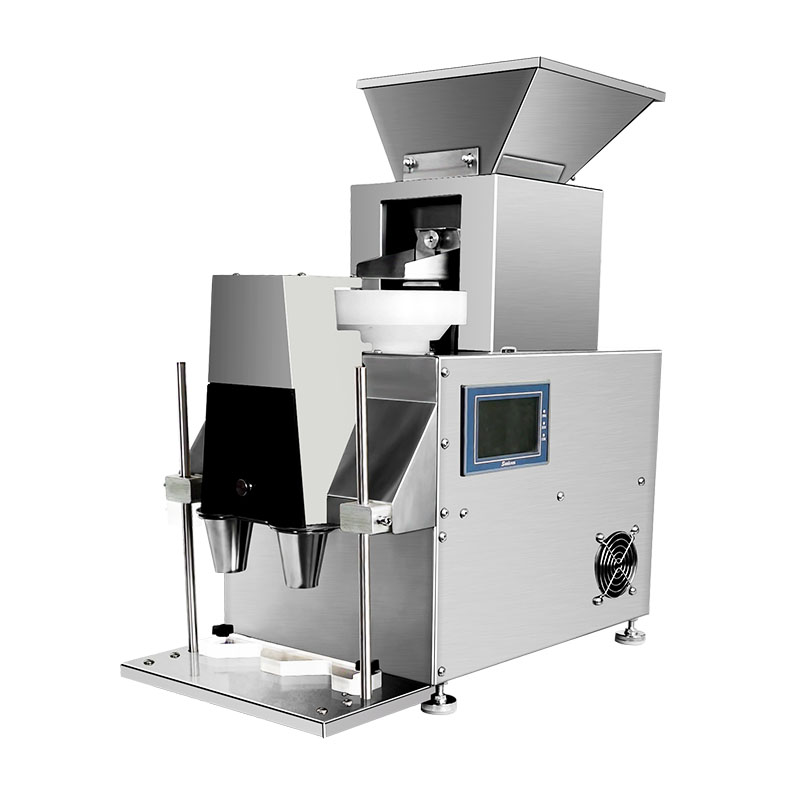

Machine details:
