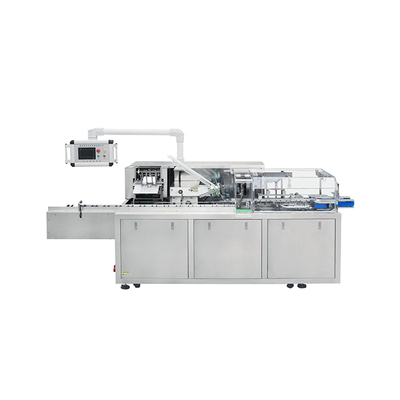

FYSZ-130A automatic stick sachet cartoning machine
Application:
1. After the product comes out of the filling machine, it enters the conveyor belt. The conveyor belt is equipped with photoelectric detection device. After the cartoning machine is in place, push the product into the material conveying chain of the cartoning machine.
2. In the cartoning machine part, the cartoning machine opens a carton after detecting the product. The product and the carton run to the same position, and the push rod works to push the product into the carton/box. The carton/box moves backward to complete the automatic carton/box sealing at both ends. The finished products are transported out by belt.
3. The cartoning machine only sucks the box when it detects the product, and does not suck the box if there is no product.

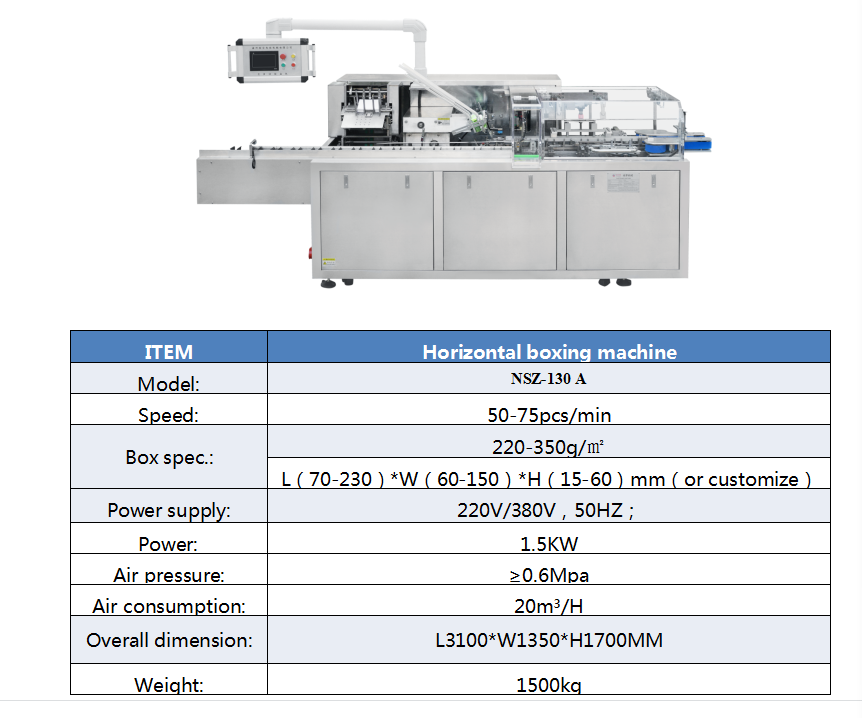

Technical parameters :
ITEM | Horizontal cartoning machine |
Model: | FYSZ-130 A |
Speed: | 50-75pcs/min |
Box spec.: | 220-350g/㎡ |
L（70-230）*W（60-150）*H（15-60）mm（or customize） |
Power supply: | 220V/380V，50HZ； |
Power: | 1.5KW |
Air pressure: | ≥0.6Mpa |
Air consumption: | 20m³/H |
Overall dimension: | L3100*W1350*H1700MM |
Weight: | 1500kg |
Main features:
1. The appearance of the machine adopts excellent stainless steel shell, and the innovative design is carried out in strict accordance with the requirements of the industry "GMP" standard.
2. The transmission part is designed with overload protection function and emergency stop device.
3. The electrical configuration adopts imported Omron from Japan, with stable performance.
4. Need an air compressor ( min. 7.5KW ), please provide by your own side.

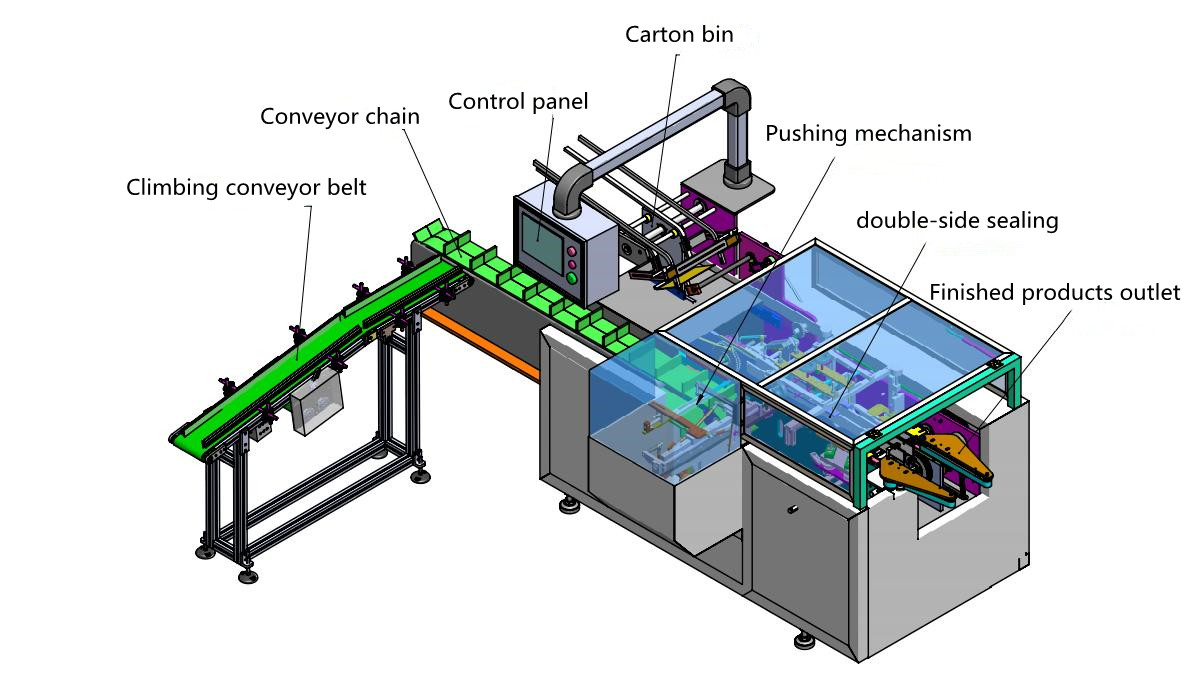

Machine structure :
Packing samples:
