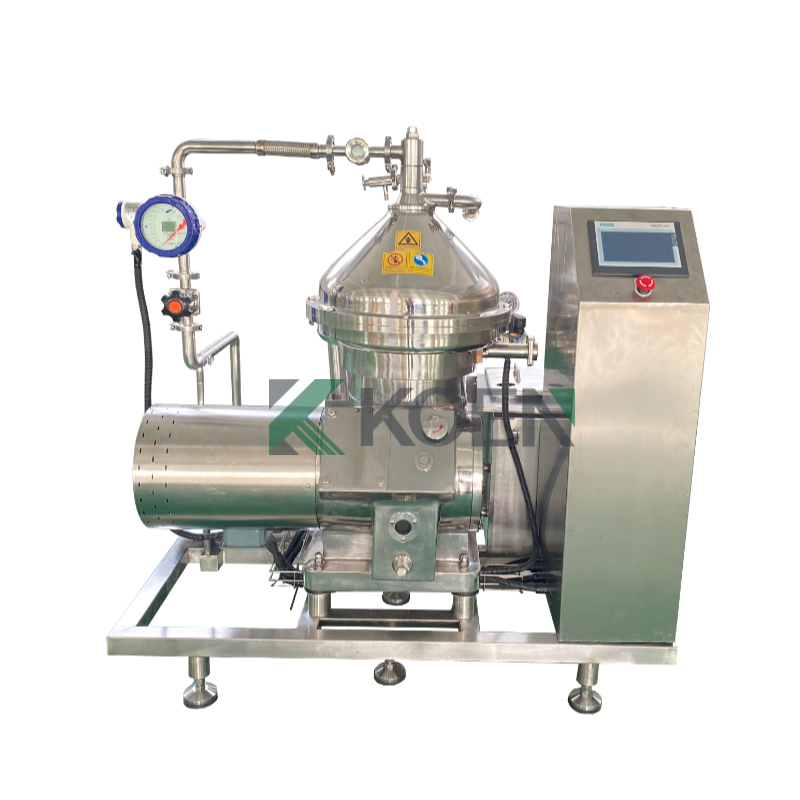

DHC270 small capacity disc bowl centrifuge 20-500L/H SS304
Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying operation; liquid-liquid (or liquid-liquidsolid) separation (emulsion separation), said separating operation. Disc separator with itscompact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation.
Competitive Advantages:
Application: Disc centrifuge is mainly used in oil, beer, chemical industry, medicine, blood, traditional Chinese medicine, fermentation broth, fruit juice purification and pulp fiber separation, soybean, peanut, wheat and other plant and animal whitening separation, various animal oils, vegetable oil, mineral oil separation, vaccines, dyes, pigments, additives, dairy products, humic acid, etc.Material separation in graphene, sewage treatment and other industries.
Technical information
Model | DHC270N |
Bowl speed (rpm) | 7300 |
Capacity (L/H) | 50-500 |
Outline size (L*W*H) | 1500×1150×1200 |
Weight (kg) | 580 |
Inlet pressure (Mpa) | 0.05 |
Outlet pressure(Mpa) | 0.1 |
Disc stack thickness (mm) | 0.6 |
Noise (dB(A)) | 90 |
Vibration at nominal speed (mm/s) | 4.5 |
Solid recovery (%) | 80-95 |
Motor power (KW) | 4 |
Voltage (v) | 380V |
Frequency (HZ) | 50 3 Phase |
Protection grade | IP-55 |
Control box | PLC control Panel (Siemens brand )
|
