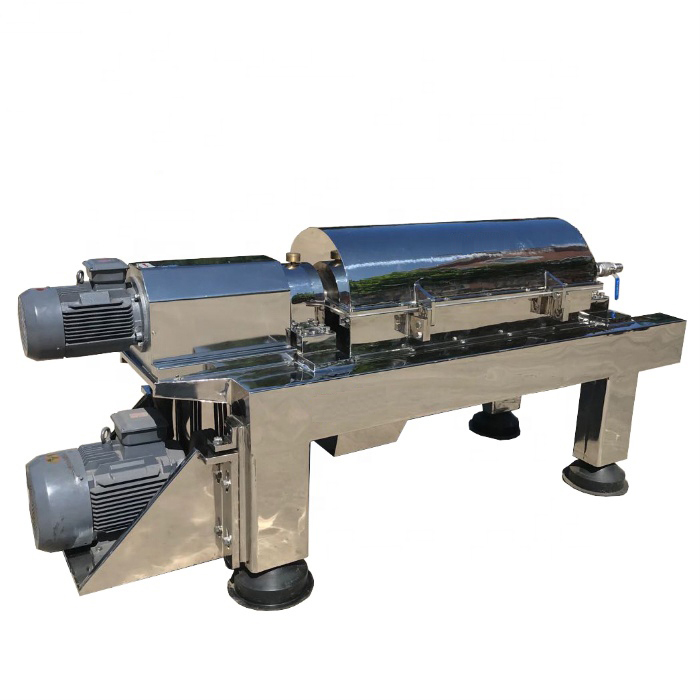

Food grade juice purification decanter centrifuge

Material: SS304
Brand: Koen Machinery
Model: LW
Detail

Industrial Price Food Grade Decanter Centrifuge

LW Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety or industries for separating all kindsof solid liquid suspension, defecating liquid phase with graded rains, and dehydrating sludge.

2 phase Decanter Centrifuge:

After entering into the high-speed turning drum, the solid-phase particles in the mixed liquid run and settle on the drum wall under the action of greatest centrifugal force; the light liquid settles at the innermost place of the drum under minimum centrifugal force; same as the drum's turning direction, a screw feeder also turns at a high speed, and a constant speed difference is generated by the differential mechanism, then the liquid will be discharged by the liquid outlet.

卧螺离心机 (1).png

· All parts coming into contact with the product are made of stainless steel.

· 3-phase AC motor for controlled torque starting via frequency converter

· Approximately 80 to 90 % of the solid is recovered.

· Low personnel costs due to continuous and automatic operation.

· Highest g-force for higher solids output

· Adjustable bowl speed via VFD

· Automatic adjustment of differential speed via VFD

· Two motor drive

· Belts for both primary motor and secondary motor

Product Paramenters

Model

Bowl Dia.

mm

Bowl Length

mm

L&D Ratio

Bowl Speed

r/min

Separation Factor

Capacity

L/H

Motor

Kw

LW220*930

220

930

4.23

4800

3075G

0.5-5

7.5

LW240*960

240

960

4

4200

3000G

0.5-5

Main: 7.5

Aux :   4

LW300*1200

300

1200

4

4000

2683G

1-5

Main: 7.5

Aux :   3.5

LW355*1600

355

1600

4.5

3800

2865G

1-8

Main: 15

Aux :   3.5

LW400*1800

400

1800

4.5

3650

2979G

2-15

Main: 15

Aux :   7

LW420*1750

420

1750

4.16

3200

2406G

2-20

Main: 30

Aux :7

LW450*2000

450

2000

4.44

3450

2994G

2-30

Main: 30

Aux :11

LW500*2000

500

2000

4

3000

2515G

3-35

Main: 37

Aux :11

LW530*2280

530

2280

4.3

2900

2491G

3-50

Main: 45

Aux :15

LW550*2200


550

2200

4

2800

2412G

4-60

Main: 55

Aux :22

LW580*2500

580

2500

4.3

2780

2506G

5-70

Main:70

Aux :25

LW650*2200

650

2200

3.38

2250

1840G

10-100

Main: 90

Aux :30

客户车间 (3).png
