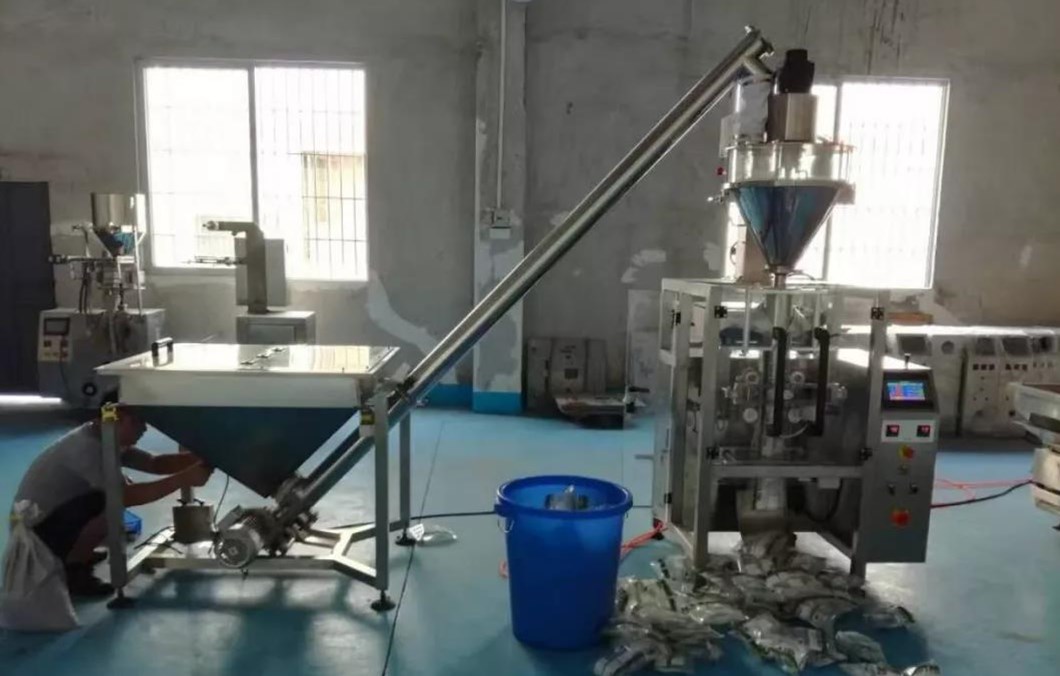

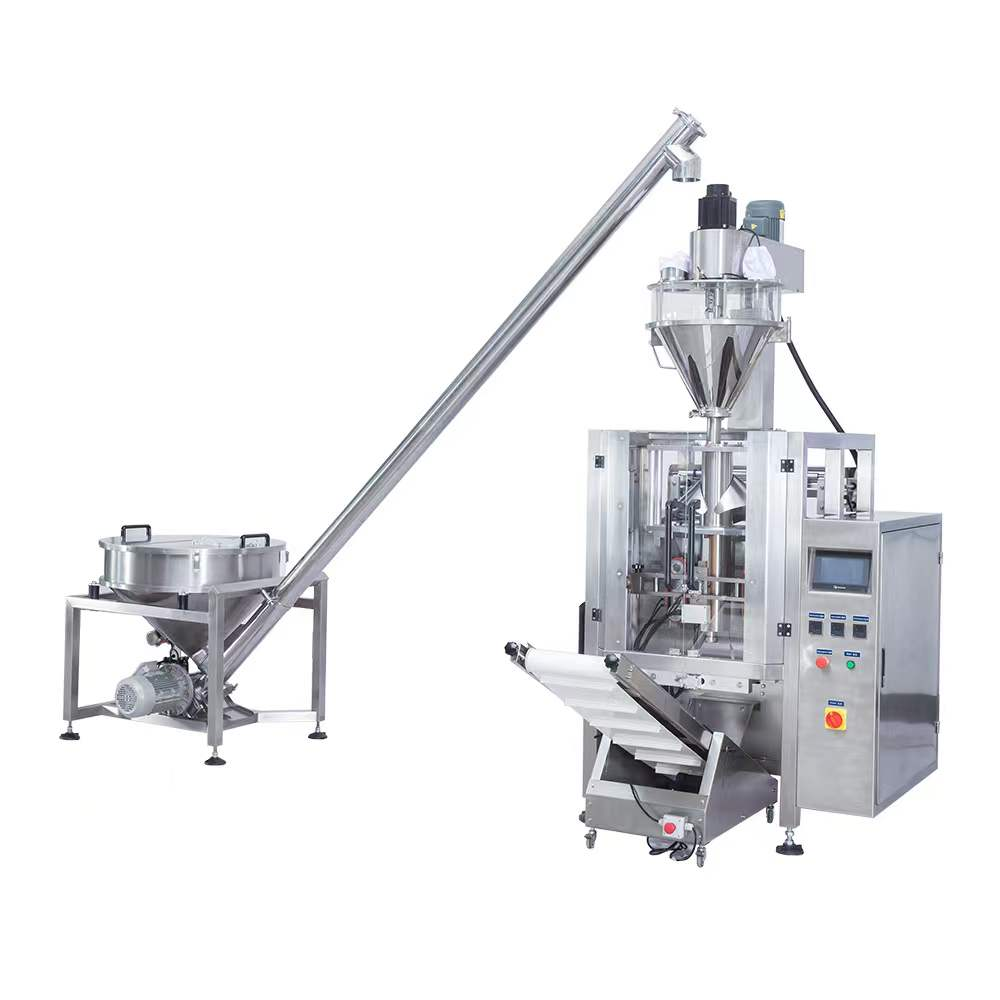

Automatic powder packing machine applicable to the packaging of materials requiring high accuracy of measurement or careful handling,such as milk powder, sugar powder, coffee powder, wheat flour, detergent powder, coconut powder,spice powder etc.
Model | KN-520F | KN-720F |
System | Auger Filler Vertical Packing Line | Auger Filler Vertical Packing Line |
Application | Powder | Powder |
Max dia of roll film | 520 | 720 |
Roll diameter | 350mm | 350 mm |
Weigh range | 500-3000 grams | 500-5000 grams |
Accuracy | ±0.1-1.5 g | ±0.1-1.5 g |
Speed | 20-40 bags/min | 20-40 bags/min |
Bag size | Width=80-250mm, length=80-350mm | Width=80-350mm, length=80-480mm |
Bag style | Pillow bag, gusset bag | Pillow bag, gusset bag |
Bag material | Laminated or PE Film | Laminated or PE film |
Control penal | 7” touch screen | 7” touch screen |
Power supply | 5.25KW | 5.75 KW |
Air consumption | 1.5m3/min | 1.5m3/min |
Voltage | 380V, 50HZ or 60HZ, three phase | 380V, 50HZ or 60HZ, three phase |
