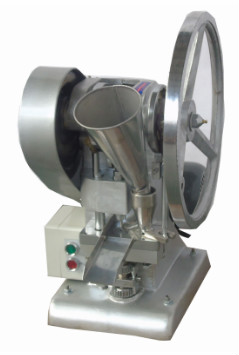

TDP-1.5 Single Punch Pill Making Machine
TDP-.5 Single Punch Tablet Press, which can press the powder material into tablet and can be widely used in pharmaceutical factory, chemical factory, hospital, R&D institution, laboratory. It is suitable for small batch production.
This machine is with good performance, strong suitability, simple operation, easily repairs, small and light. Even under the conditions or power cut, hand swing available. It is only with one set of die, the depth of filling and the thickness of tablets is adjustable.
Main features:
1. Easy to operate.
2. High quality with Low Price.
3. Different shapes can be pressed by changing different punching dies.
4. Easily remove parts for quick machine`s maintenance.
5. Size and shapes of tablet could be customized as your need.
6. The thickness of tablet can be adjusted.
Machine Structure：
Technical parameter:
Model | TDP-1.5 |
Max.Thickness of Tablet: | 6（mm) |
Production Capacity: | 6000(pcs/h) |
Max. dia. of tablet： | 12 (mm) |
Power of Motor: | 0.55(Kw) |
Max. depth of fill: | 12(mm) |
Overall Size: | 640*470*750 (mm) |
Weight : | 45（kg) |
Package size: | 680*500*800(mm) |
Package weight： | 60(kg) |
Finished products :
