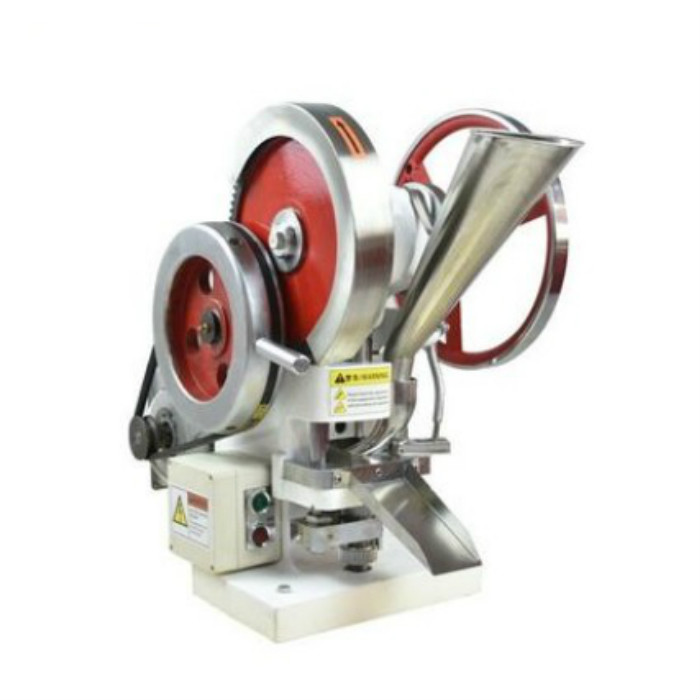

TDP-5 Single Punch Tablet Press
Product introduction：
This machine is a mini type desktop tablet making machine, driven by motor and can continually punch various tablets. The machine can punch fine grain and coarse powder into circular tablets or irregular shape tablets;and it can be used for laboratory production or small batch production of tablets,sugarcoated tablets,calcium tablets,irregular shapes,ect.
Main Features:
1. Applicable to press large grain solid, wet or extremely fine powder.
2.Simple in structure, convenient for operation and in high automatic degree.
3.Applicable to press tablets of different shapes.
Technical Parameters：
Model: | TDP-5 |
Max. pressure (kn): | 50 |
Dia. of tablet (mm): | 5-18(20) |
Depth of fill (mm): | 5-18 |
Thickness of tablet (mm): | 9 |
Voltage: | 220/380V |
Power of Motor(Kw): | 0.75 |
Production Capacity (pcs/h): | 4000 |
Overall Size(mm): | 640*330-600 |
Net weight (kg): | 125 |
Packaging size(mm): | 650*440*650 |
Gross weight (kg): | 135 |
Machine details:
Finished products:
