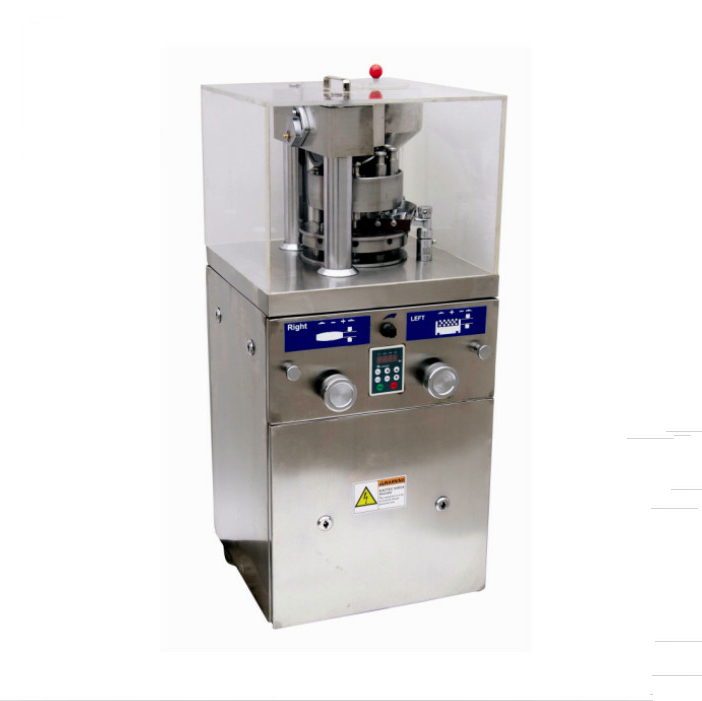

ZP-5/7/9A small rotary tablet press-12mm
Brief introduction:
1.ZP-5/7/9A is the smallest automatic rotary type tablets making machine. It 's used to press small granular raw materials into various tablets.
2.It is mainly used for tablet production in the pharmaceutical industry, and is also used in chemical industry, food,electronics and other industries.
3.The peripheral housing adopts a fully closed form. It is made of stainless steel.The internal table surface is made of stainless steel.The turret surface is subject to special treatment to maintain luster on the surface and avoid cross contamination, conforming to GMP requirements. The transparent doors and windows installed enable the tablet pressing status to be clearly observed.
Characteristics:
1. Pressure is 40KN, strong stability, the fuselage is mainly made of stainless steel and aluminum alloy, making the fuselage more portable.
2. Humanized knurling screw operating table, more convenient to operate.
3. Stainless steel material, is in line with GMP production requirements.
4. Stainless steel shield can prevent raw materials from entering turntable and damage equipment.
5. Can make max 12mm diamter round tablets, special shape can be customized.
6. Tablet thickness can be adjusted.
Technical parameters:
Model | ZP-5/7/9A ZP-10/11/12A (Standard type) |
Punch & Dies (sets) | 5/ 7/ 9 /10/ 11 /12 |
Max. Pressure（Kn） | 0-40 (adjustable) |
Max. Dia. of tablet（mm） | 4-12(special-shaped 14) |
Max.depth of filling（mm) | 1-15 |
Max.Thickness of tablet（mm） | 1-6 (adjustable) |
Turret speed（r/min） | 30 |
Production capacity（pcs/h） | 9000-16200 (5/7/9) 16000-18000(10/11/12) |
Motor Power（Kw） | 1.5 |
Power supply(V/Hz) | 380V/50Hz |
Overall size（mm） | 480*490*1100 |
Gross weight（Kg） | 185 |
Packaging size | 500*510*1300 |
Packaging weight(kg) | 225 |
Machine details:
Finished products:
