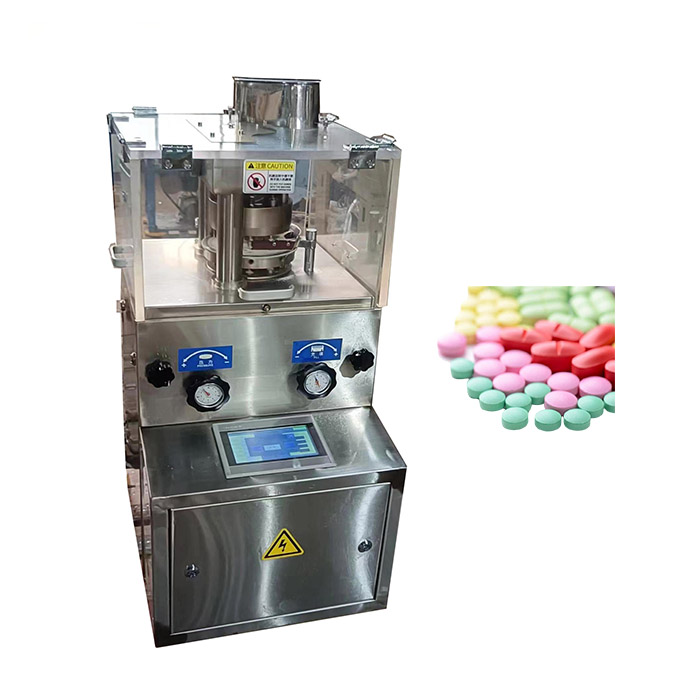

ZP-5/7/-9B PLC type rotary tablet press
Product introduction：
1.This model is upgraded from ZP-5/7/9B, replace button control by PLC touch screen.
2. Electroplating treatment on surface of the turntable and molds.
3. More durable and easy to operate.
Characteristics:
1. Pressure is 60KN, strong stability, the fuselage is mainly made of stainless steel and aluminum alloy, making the fuselage more portable.
2. Humanized knurling screw operating table, more convenient to operate.
3. Stainless steel material, is in line with GMP production requirements.
4. Stainless steel shield can prevent raw materials from entering turntable and damage equipment.
5. Aluminum alloy sheet turbine box makes the fuselage lighter.
6. The magnetic sliding door is used on all sides of the turbine chamber of the motor, which is convenient for inspection and maintenance.
7. High quality aluminium alloy wheels, easy to move.
Technical parameters:
ZP-5/7/9/10/11/12B |
Materials | Stainless steel |
Pressure(kn) | 60 |
Tablet diameter(mm) | 4-20 |
Tablet thickness (mm) | 1-6 (adjustable) |
Filling depth(mm) | 1-15(adjustable) |
Capacity（pcs/min) | 9000-18000 |
Motor power(kw) | 2.2 |
Turret speed（r/min） | 30 |
Machine weight(kg) | 260 |
Overall size(mm) | 480*630*1100 |
Finished tablet samples:
